704.915.4
ActiveEAO

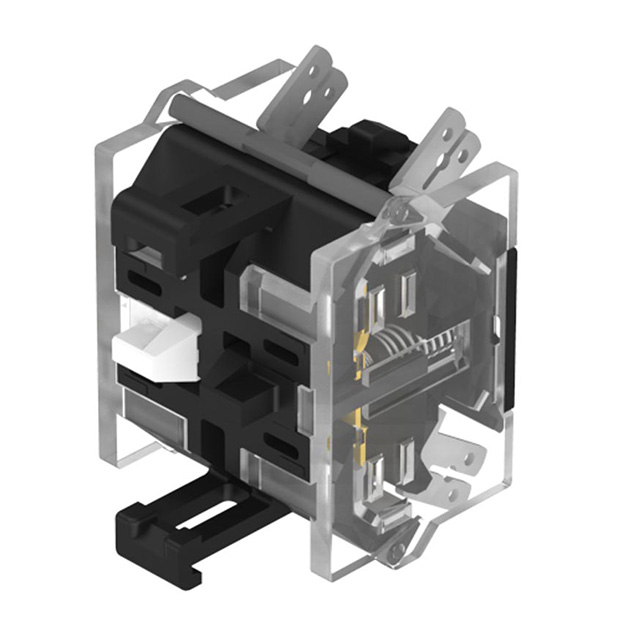

CONTACT BLOCK DPST-NC 6A 500V
Deep-Dive with AI
Search across all available documentation for this part.
704.915.4
ActiveEAO
CONTACT BLOCK DPST-NC 6A 500V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 704.915.4 | 704.915 Series |
|---|---|---|
| (Select First, Then Apply Filters) Compatible Series | 04, EAO | 04, EAO |
| Circuit | DPST-NC | DPST-NO/NC, DPST-NC, SPST-NO |
| Contact Rating @ Voltage | 6 A, 500 VAC | 6 - 500 A |
| Requires | Switch Body | Switch Body |
| Termination Style | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) |
704.915 Series
CONTACT BLOCK DPST-NO/NC 6A 500V
| Part | Termination Style | Requires | (Select First, Then Apply Filters) Compatible Series | Contact Rating @ Voltage | Circuit |
|---|---|---|---|---|---|
EAO 704.915.5 | Quick Connect - 0.250" (6.3mm) | Switch Body | 04, EAO | 6 A, 500 VAC | DPST-NO/NC |
EAO 704.915.4 | Quick Connect - 0.250" (6.3mm) | Switch Body | 04, EAO | 6 A, 500 VAC | DPST-NC |
EAO 704.915.1 | Quick Connect - 0.250" (6.3mm) | Switch Body | 04, EAO | 6 A, 500 VAC | SPST-NO |
Quick Connect - 0.250" (6.3mm) | Switch Body | 04, EAO | 10 A, 500 VAC | DPST-NC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.03 | |
| 10 | $ 19.01 | |||
| 25 | $ 17.92 | |||
| 50 | $ 17.14 | |||
| 100 | $ 16.39 | |||
| 250 | $ 15.45 | |||
| 500 | $ 14.77 | |||
Description
General part information
704.915 Series
Configurable Contact Block DPST-NC 6A @ 500VAC
