BC-CGS-101807

Active

Boxco

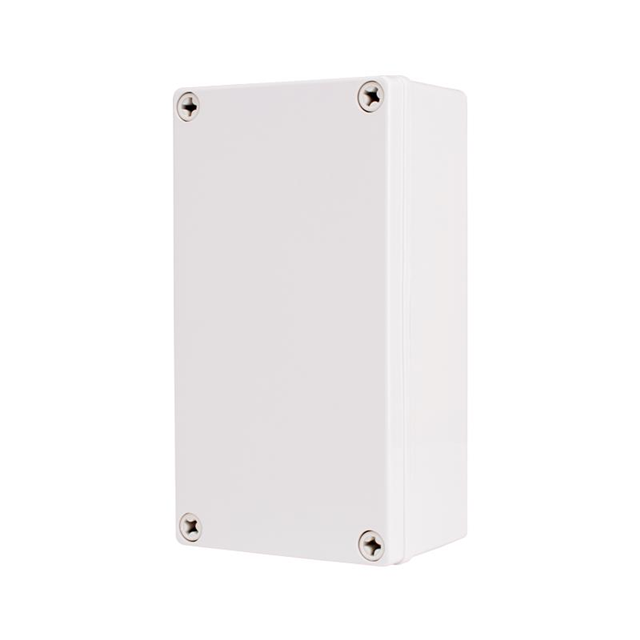

BOX PLAS LGT GRY 7.28"L X 3.94"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.66

Description

General part information

BC-CG Series

Box Plastic, Polycarbonate/Fiberglass Light Gray Lift-Off Screw Cover 7.283" L x 3.937" W (185.00mm x 100.00mm) X 2.756" (70.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BC-CGS-101807	BC-CG Series

Area (L x W)	185 cm˛	22.3 - 1419 cm˛
Area (L x W)	28.7 in˛	9.57 - 220 in˛
Area (L x W)	-	322 cm˛
Area (L x W)	-	49.9 in˛
Area (L x W)	-	144 cm˛
Color	Light Gray	Light Gray
Container Type	Box	Box
Design	Lift-Off Screw Cover	Lift-Off Screw Cover, Stainless Steel Latch, Hinged Door
Features	Sealing Gasket, Wall Mount, Flame Retardant	Sealing Gasket, Wall Mount, Flame Retardant, Hinged, Latches, Lockable, Mounting Brackets
Height [z]	70 mm	55 - 255 mm
Height [z]	2.756 "	2.165 - 10.039 in
Material	Plastic, Polycarbonate/Fiberglass	Plastic, Polycarbonate/Fiberglass
Material Flammability Rating	UL94 V-0, UL94 5VA, UL94 HB	UL94 V-0, UL94 5VA, UL94 HB
Ratings	NEMA 6, IP66, UL 508A, NEMA 4X, IP67	NEMA 6, IP66, UL 508A, NEMA 4X, IP67
Size / Dimension	-	200 mm
Size / Dimension	-	100 - 200 mm
Size / Dimension [x]	7.283 in	3.74 - 28.74 "
Size / Dimension [x]	185 mm	7.874 - 730 mm
Size / Dimension [y]	100 mm	7.874 - 530 mm
Size / Dimension [y]	3.937 in	2.559 - 20.866 in
Thickness	-	4.5 mm
Thickness	-	0.177 in

BC-CG Series

BOX PLAS LGT GRY 6.3"L X 3.15"W

Part	Material Flammability Rating	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Ratings	Material	Color	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Container Type	Design	Features	Area (L x W) [custom]	Area (L x W) [custom]	Thickness [custom]	Thickness [custom]	Size / Dimension [x]	Size / Dimension [y]	Area (L x W)
Boxco BC-CGS-081605	UL94 5VA, UL94 HB, UL94 V-0	80 mm	160 mm	3.15 in	6.299 "	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	Plastic, Polycarbonate/Fiberglass	Light Gray	2.165 in	55 mm	128 cm˛	19.8 in˛	Box	Lift-Off Screw Cover	Flame Retardant, Sealing Gasket, Wall Mount
Boxco BC-CGS-142309	UL94 5VA, UL94 HB, UL94 V-0	140 mm	230 mm	5.512 in	9.055 in	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	Plastic, Polycarbonate/Fiberglass	Light Gray	3.74 in	95 mm			Box	Lift-Off Screw Cover	Flame Retardant, Sealing Gasket, Wall Mount	322 cm˛	49.9 in˛
Boxco BC-CGP-507025	UL94 5VA, UL94 HB, UL94 V-0	530 mm	730 mm	20.866 in	28.74 in	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	Plastic, Polycarbonate/Fiberglass	Light Gray	10.039 in	255 mm			Box	Hinged Door, Stainless Steel Latch	Flame Retardant, Hinged, Latches, Lockable, Mounting Brackets, Sealing Gasket			4.5 mm	0.177 in
Boxco BC-CGP-353518	UL94 5VA, UL94 HB, UL94 V-0	350 mm	350 mm	13.78 in	13.78 in	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	Plastic, Polycarbonate/Fiberglass	Light Gray	7.087 in	180 mm	1225 cm²	190 in²	Box	Hinged Door, Stainless Steel Latch	Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket
Boxco BC-CGS-202016	UL94 5VA, UL94 HB, UL94 V-0	7.874 "	7.874 "			IP66, IP67, NEMA 4X, NEMA 6, UL 508A	Plastic, Polycarbonate/Fiberglass	Light Gray	6.299 in	160 mm	400 cm²	62 in²	Box	Lift-Off Screw Cover	Flame Retardant, Sealing Gasket, Wall Mount					200 mm	200 mm
Boxco BC-CGS-081807	UL94 5VA, UL94 HB, UL94 V-0	80 mm	180 mm	3.15 in	7.087 "	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	Plastic, Polycarbonate/Fiberglass	Light Gray	2.756 "	70 mm	22.3 in˛		Box	Lift-Off Screw Cover	Flame Retardant, Sealing Gasket, Wall Mount							144 cm˛
Boxco BC-CGS-102007	UL94 5VA, UL94 HB, UL94 V-0		200 mm	3.937 in	7.874 in	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	Plastic, Polycarbonate/Fiberglass	Light Gray	2.756 "	70 mm			Box	Lift-Off Screw Cover	Flame Retardant, Sealing Gasket, Wall Mount						100 mm
Boxco BC-CGS-161607	UL94 5VA, UL94 HB, UL94 V-0	160 mm	160 mm	6.299 in	6.299 "	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	Plastic, Polycarbonate/Fiberglass	Light Gray	2.756 "	70 mm	256 cm˛	39.7 in˛	Box	Lift-Off Screw Cover	Flame Retardant, Sealing Gasket, Wall Mount
Boxco BC-CGS-060905	UL94 5VA, UL94 HB, UL94 V-0	65 mm	95 mm	2.559 in	3.74 "	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	Plastic, Polycarbonate/Fiberglass	Light Gray	2.165 in	55 mm	61.8 cm˛	9.57 in˛	Box	Lift-Off Screw Cover	Flame Retardant, Sealing Gasket, Wall Mount
Boxco BC-CGS-151507	UL94 5VA, UL94 HB, UL94 V-0	150 mm	150 mm	5.906 "	5.906 in	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	Plastic, Polycarbonate/Fiberglass	Light Gray	2.953 in	75 mm	225 cm²	34.9 in˛	Box	Lift-Off Screw Cover	Flame Retardant, Sealing Gasket, Wall Mount
