629-W25-340-015
ActiveEDAC Inc.
629W (WATERPROOF) SERIES RIGHT A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
629-W25-340-015
ActiveEDAC Inc.
629W (WATERPROOF) SERIES RIGHT A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 629-W25-340-015 |
|---|---|
| Backset Spacing | 0.406 in |
| Backset Spacing | 10.3 mm |
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA6T), Nylon 6T |
| Features | Grounding Indents, Mounting Brackets, Shielded |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
629-W25 Series
| Part | Contact Type | Backset Spacing | Backset Spacing | Termination | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Current Rating (Amps) | Dielectric Material | Ingress Protection | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Contact Finish | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Features | Color | Material Flammability Rating | Mounting Type | Connector Style | Number of Rows | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Signal | 0.406 in | 10.3 mm | Solder | B DB | 3 | 5 A | Polyamide (PA6T) Nylon 6T | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 15 µin | 0.38 µm | Male Pins Plug | Gold | Copper Alloy | -55 °C | 125 °C | Grounding Indents Shielded | Black | UL94 V-0 | Through Hole Right Angle | Combo D-Sub | 2 | Female Screwlock (4-40) Mating Side |
EDAC Inc. | Signal | 0.406 in | 10.3 mm | Solder | B DB | 3 | 5 A | Polyamide (PA6T) Nylon 6T | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 15 µin | 0.38 µm | Male Pins Plug | Gold | Copper Alloy | -55 °C | 125 °C | Grounding Indents Mounting Brackets Shielded | Black | UL94 V-0 | Through Hole Right Angle | Combo D-Sub | 2 | Female Screwlock (4-40) Mating Side |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 300 | $ 16.50 | |
Description
General part information
629-W25 Series

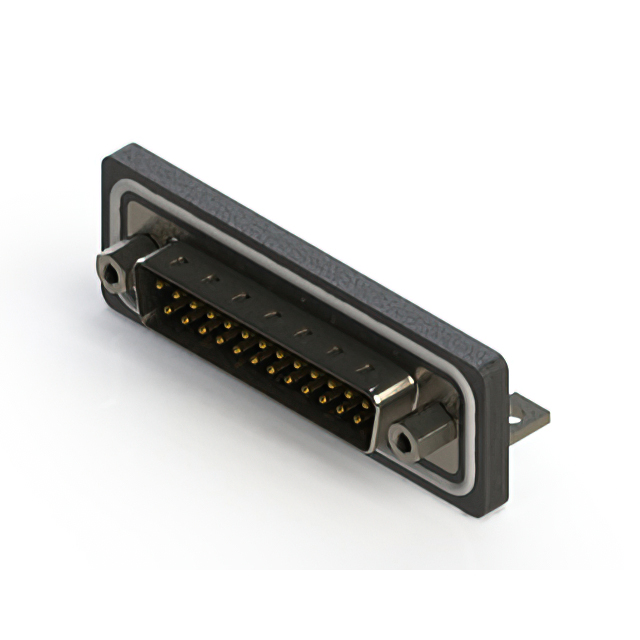

25 Position D-Sub, Combo Plug, Male Pins Connector
