216A-04MAR
ActiveATTEND Technology

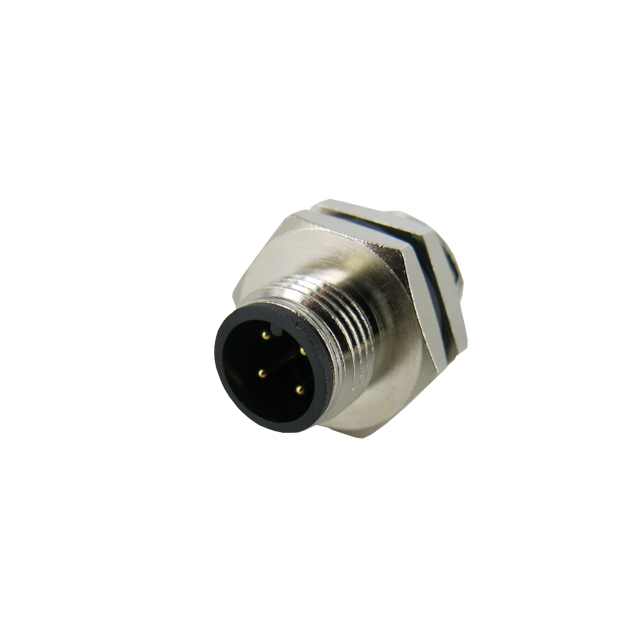

M12 A-CODE RECEPTACLE, 4PIN MALE
216A-04MAR
ActiveATTEND Technology
M12 A-CODE RECEPTACLE, 4PIN MALE
Description
General part information
216A-04MAR
4 Position Circular Connector Receptacle, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 216A-04MAR |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10 µin |
| Contact Material | Brass |
| Current Rating | 4 A |
| Fastening Type | Threaded |
| Ingress Protection | Waterproof |
| Insert Material | PBT, Polybutylene Terephthalate |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount |
| Number of Positions | 4 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M12-4 |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating | 250 V |
