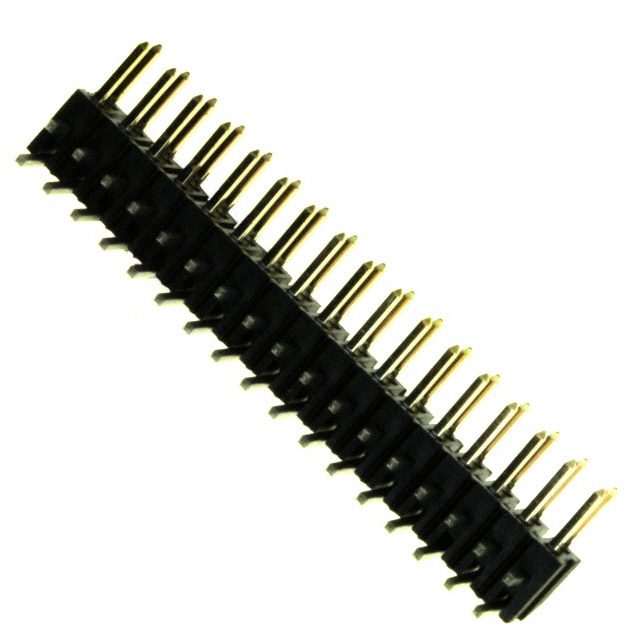

Specification	58102-G61-17LF

Connector Type	Header
Contact Finish - Mating	GXT™, Gold
Contact Finish Thickness - Mating	30 µin
Contact Length - Mating	0.157 in
Contact Length - Post	0.098 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.165 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.079 in
Row Spacing - Mating	0.079 in
Shrouding	Unshrouded
Style	Board, Board or Cable
Termination	Solder
Voltage Rating	200 V

58102 Series

...

Part	Contact Length - Mating	Insulation Height	Insulation Material	Style	Contact Type	Number of Positions Loaded	Contact Shape	Contact Material	Contact Length - Post	Contact Finish Thickness - Mating	Shrouding	Pitch - Mating	Contact Finish - Mating	Current Rating	Mounting Type	Termination	Number of Positions	Fastening Type	Row Spacing - Mating	Voltage Rating	Insulation Color	Number of Rows	Material Flammability Rating	Connector Type	Contact Finish Thickness - Post	Contact Finish - Post	Number of Positions Loaded
Amphenol ICC (FCI) 58102-S61-05LF	0.157 in	0.165 in	Thermoplastic	Board Board or Cable	Male Pin	All	Square	Copper Alloy	0.098 in	15 µin	Unshrouded	0.079 in	Gold GXT™	2 A	Right Angle Through Hole	Solder	10	Push-Pull	0.079 in	200 V	Black	2	UL94 V-0	Header
Amphenol ICC (FCI) 58102-S61-02LF	0.157 in	0.165 in	Thermoplastic	Board Board or Cable	Male Pin	All	Square	Copper Alloy	0.098 in	15 µin	Unshrouded	0.079 in	Gold GXT™	2 A	Right Angle Through Hole	Solder	4	Push-Pull	0.079 in	200 V	Black	2	UL94 V-0	Header
Amphenol ICC (FCI) 58102-G61-07LF	0.157 in	0.165 in	Thermoplastic	Board Board or Cable	Male Pin	All	Square	Copper Alloy	0.098 in	30 µin	Unshrouded	0.079 in	Gold GXT™	2 A	Right Angle Through Hole	Solder	14	Push-Pull	0.079 in	200 V	Black	2	UL94 V-0	Header
Amphenol ICC (FCI) 58102-F61-07LF	0.157 in	0.165 in	Thermoplastic	Board Board or Cable	Male Pin	All	Square	Copper Alloy	0.098 in	8 µin	Unshrouded	0.079 in	Gold GXT™	2 A	Right Angle Through Hole	Solder	14	Push-Pull	0.079 in	200 V	Black	2	UL94 V-0	Header
Amphenol ICC (FCI) 58102-S61-11	0.157 in	0.165 in	Thermoplastic	Board Board or Cable	Male Pin	All	Square	Copper Alloy	0.098 in	15 µin	Unshrouded	0.079 in	Gold GXT™	2 A	Right Angle Through Hole	Solder	22	Push-Pull	0.079 in	200 V	Black	2	UL94 V-0	Header	150 µin	Tin-Lead
Amphenol ICC (FCI) 58102-S61-18	0.157 in	0.165 in	Thermoplastic	Board Board or Cable	Male Pin	All	Square	Copper Alloy	0.098 in	15 µin	Unshrouded	0.079 in	Gold GXT™	2 A	Right Angle Through Hole	Solder	36	Push-Pull	0.079 in	200 V	Black	2	UL94 V-0	Header	150 µin	Tin-Lead
Amphenol ICC (FCI) 58102-S61-07	0.157 in	0.165 in	Thermoplastic	Board Board or Cable	Male Pin	All	Square	Copper Alloy	0.098 in	15 µin	Unshrouded	0.079 in	Gold GXT™	2 A	Right Angle Through Hole	Solder	14	Push-Pull	0.079 in	200 V	Black	2	UL94 V-0	Header	150 µin	Tin-Lead
Amphenol ICC (FCI) 58102-S61-14LF	0.157 in	0.165 in	Thermoplastic	Board Board or Cable	Male Pin	All	Square	Copper Alloy	0.098 in	15 µin	Unshrouded	0.079 in	Gold GXT™	2 A	Right Angle Through Hole	Solder	28	Push-Pull	0.079 in	200 V	Black	2	UL94 V-0	Header
Amphenol ICC (FCI) 58102-G61-10LF	0.157 in	0.165 in	Thermoplastic	Board Board or Cable	Male Pin	All	Square	Copper Alloy	0.098 in	30 µin	Unshrouded	0.079 in	Gold GXT™	2 A	Right Angle Through Hole	Solder	20	Push-Pull	0.079 in	200 V	Black	2	UL94 V-0	Header
Amphenol ICC (FCI) 58102-S61-13-26R	0.157 in	0.165 in	Thermoplastic	Board Board or Cable	Male Pin		Square	Copper Alloy	0.098 in	15 µin	Unshrouded	0.079 in	Gold GXT™	2 A	Right Angle Through Hole	Kinked Pin Solder	26	Push-Pull	0.079 in	200 V	Black	2	UL94 V-0	Header	150 µin	Tin-Lead	25
