Description
General part information

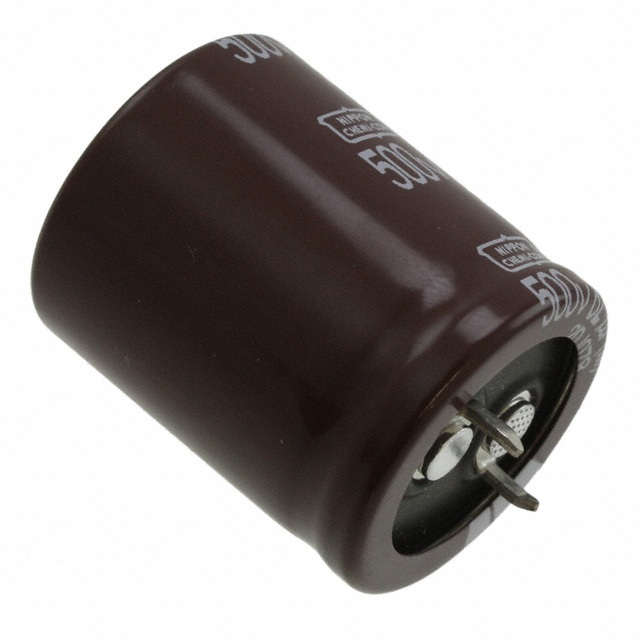

EGXA451VSN331MA35L
330 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 125°C
Technical Specifications
Parameters and characteristics for this part
| Specification | EGXA451VSN331MA35L |
|---|---|
| Applications | General Purpose |
| Capacitance | 330 µF |
| Height - Seated (Max) | 1.476 in |
| Lead Spacing | 0.394 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 1.51 A, 2.1593 A |
| Size / Dimension Diameter | 1.378 in |
| Tolerance | 20 % |
| Voltage - Rated | 450 V |
