Description
General part information
GFC2004J-YPOEEP09

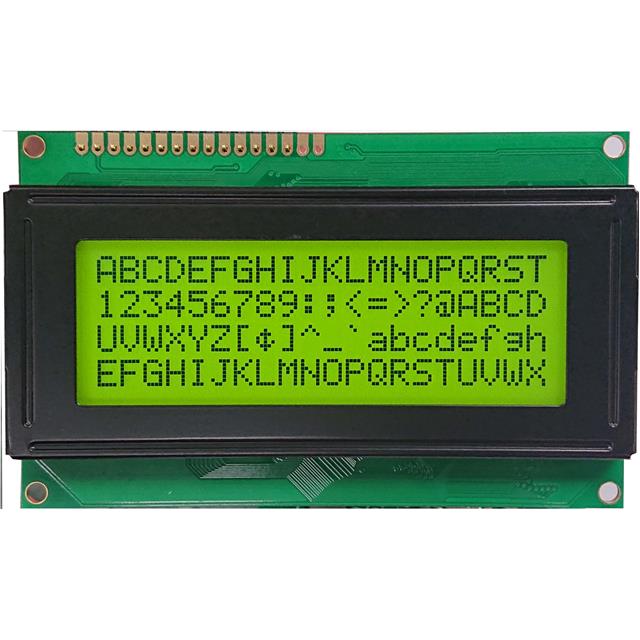

Character Display Module Transflective 5 x 8 Dots STN - Y/G LED - Yellow/Green Parallel 98.00mm x 60.00mm x 13.30mm
Technical Specifications
Parameters and characteristics for this part
| Specification | GFC2004J-YPOEEP09 |
|---|---|
| Background Color | Yellow, Green |
| Backlight Color | Yellow, Green |
| Backlight Type | LED |
| Character Height | 4.75 mm |
| Character Height (Dots) | 8 Dots |
| Character Width | 2.95 mm |
| Character Width (Dots) | 5 Dots |
| Controller Type | ST7066U-0B |
| Display Columns | 20 |
| Display Mode | Transflective |
| Display Rows | 4 |
| Display Type | STN - Y/G |
| Dot Size Height | 0.55 mm |
| Dot Size Width | 0.55 mm |
| Interface | Parallel |
| Number of Characters | 80 characters |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Outline Height | 13.3 mm |
| Outline Length | 98 mm |
| Outline Width | 60 mm |
| Text Color | Black |
| Viewing Area Length | 76 mm |
| Viewing Area Width | 25.2 mm |
| Voltage - Supply | 5 VDC |
