3240041
ActivePhoenix Contact
CONN SPADE TERM 14-16AWG M6 BLU
3240041
ActivePhoenix Contact
CONN SPADE TERM 14-16AWG M6 BLU
Description
General part information
3240041

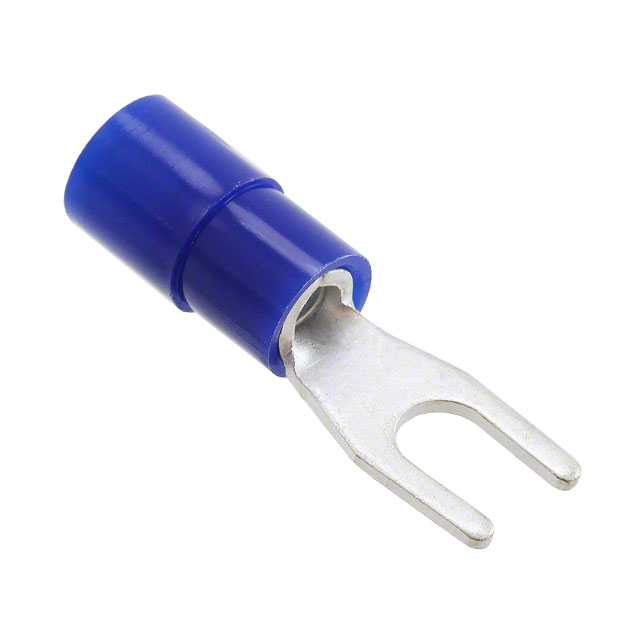

Blue M6 Stud Spade Terminal Connector Crimp 14-16 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 3240041 |
|---|---|
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation | Insulated |
| Length - Overall | 0.886 in |
| Length - Termination | 0.433 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M6 Stud, M6 |
| Terminal Type | Standard |
| Termination | Crimp |
| Tongue Inside Opening | 0.256 in |
| Width - Outer Edges | 0.421 in |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
