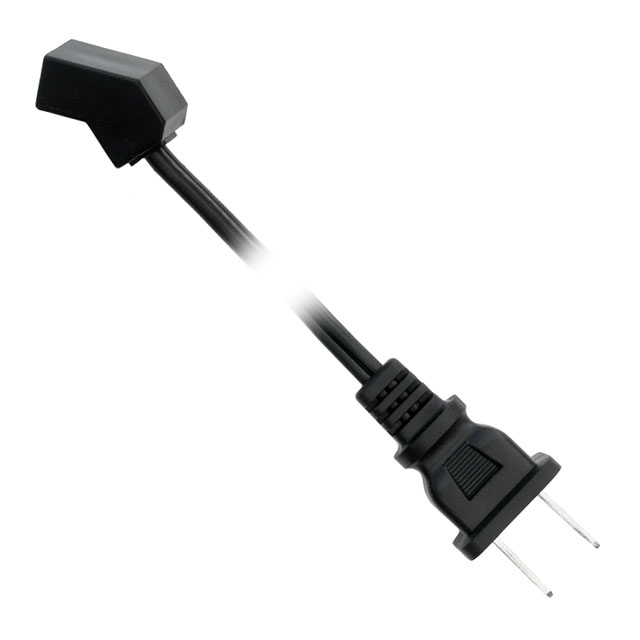

HP75-36P

Active

Gardtec Incorporated

FAN CORD 45DEG 36" 18/2 1-15PLUG

Search across all available documentation for this part.

Active

Gardtec Incorporated

FAN CORD 45DEG 36" 18/2 1-15PLUG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HP75-36P	HP75 Series

1st Connector	Fan Terminal Receptacle 45°	Fan Terminal Receptacle 45°
2nd Connector	NEMA 1-15 Plug	Cut End, NEMA 1-15 Plug
Approval Agency Marking	cURus	cURus
Cord Type	SPT-1	SPT-1
Features	-	Thumbwheel
Length	91.44 cm	1.83 - 91.44 cm
Length	36 in	36 - 72 in
Length	-	609.6 mm
Length	-	24 in
Number of Conductors	2	2
Operating Temperature	105 C	105 C
Style	Female Receptacle to Male Plug	Female Receptacle to Cable, Female Receptacle to Male Plug
Voltage Rating	300 VDC	300 VDC

RED TRACER DC FAN CORD 24" 18/2

Part	Approval Agency Marking	Cord Type	Number of Conductors	1st Connector	Style	Length [x]	Length [x]	2nd Connector	Voltage Rating	Operating Temperature	Length	Length	Features
Gardtec Incorporated HP75-24R	cURus	SPT-1	2	Fan Terminal Receptacle 45°	Female Receptacle to Cable	609.6 mm	24 in	Cut End	300 VDC	105 C
Gardtec Incorporated HP75-36R	cURus	SPT-1	2	Fan Terminal Receptacle 45°	Female Receptacle to Cable			Cut End	300 VDC	105 C	91.44 cm	36 in
Gardtec Incorporated HP75-36P	cURus	SPT-1	2	Fan Terminal Receptacle 45°	Female Receptacle to Male Plug			NEMA 1-15 Plug	300 VDC	105 C	91.44 cm	36 in
Gardtec Incorporated HP75-72PS	cURus	SPT-1	2	Fan Terminal Receptacle 45°	Female Receptacle to Male Plug			NEMA 1-15 Plug	300 VDC	105 C	1.83 m	72 in	Thumbwheel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 2.01
