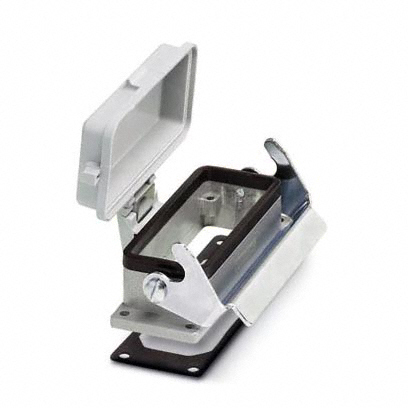

1771613
ObsoletePhoenix Contact
CONN BASE BOTTOM ENTRY SZB16
1771613
ObsoletePhoenix Contact
CONN BASE BOTTOM ENTRY SZB16
Description
General part information
1771613
Base - Panel Mount Connector Bottom Entry B16
Technical Specifications
Parameters and characteristics for this part
| Specification | 1771613 |
|---|---|
| Connector Type | Base - Panel Mount |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | B16 |
| Size / Dimension Height | 1.063 in |
| Size / Dimension Length | 4.488 in |
| Size / Dimension Width | 1.693 in |
| Style | Bottom Entry |
