FMCA3166-36
ActiveFairview Microwave
CBL ASSY SHVJACK-SHVJACK 36
FMCA3166-36
ActiveFairview Microwave
CBL ASSY SHVJACK-SHVJACK 36
Description
General part information
FMCA3166-36

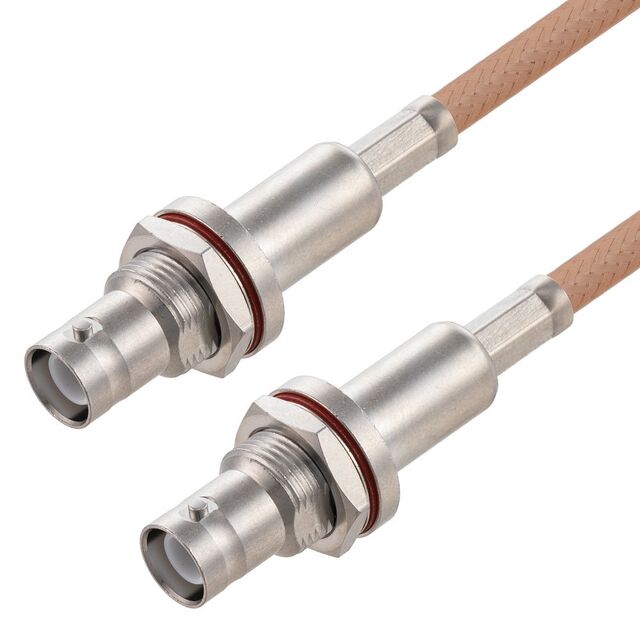

Cable Assembly Coaxial SHV to SHV RG-400 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA3166-36 |
|---|---|
| 1st Connector | SHV Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | SHV Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 400 |
| Color | Tan |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 300 MHz |
| Length | 36 in |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SHV |
