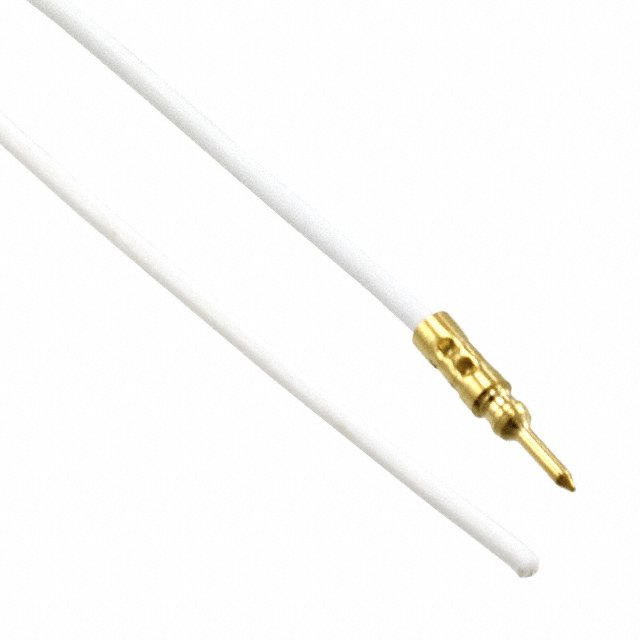

Specification	G125-MW20150L94

Color	White
Contact End	Pin to Cable
Contact End Shape	Round
Contact Finish	Gold
Contact Finish Thickness	8 µin
Length	5.9 in
Number of Conductors	1
Number of Rows	1
Wire Gauge	28 AWG

G125-MW Series

Part	Insulation Color	Current Rating Options	Connector Type	Number of Rows	Fastening Type	Contact Material	Style	Contact Shape	Insulation Height	Shrouding	Pitch - Mating	Row Spacing - Mating	Mounting Type	Number of Positions (Normal)	Number of Positions (Power)	Number of Positions (Total)	Contact Finish - Mating	Insulation Material	Number of Positions Loaded	Operating Temperature (Min)	Operating Temperature (Max)	Contact Length - Post	Termination	Features	Material Flammability Rating	Contact Finish - Post	Contact Type	Row Spacing	Contact Termination	Pitch	Color	Number of Conductors	Contact End	Contact Finish Thickness	Wire Gauge	Length	Contact Finish
Harwin Inc. G125-MH104M4-04AD000P	Green	10A 2A	Header	2	Screw Lock	Beryllium Copper Phosphor Bronze	Board Board or Cable	Circular	0.208 in	Shrouded - 4 Wall	0.049 in	0.049 in	Right Angle Through Hole	4	4	8	Gold	Nylon 4T Polyamide (PA4T)	All	-65 °C	150 °C	0.13 in	Solder	Mating Flange Mounting Flange Polarizing Key	UL94 V-0	Gold	Male Pin
Harwin Inc. G125-MH116M3-04AD000P	Green	10A 2A	Header	2	Screw Lock	Beryllium Copper Phosphor Bronze	Board Board or Cable	Circular	0.208 in	Shrouded - 4 Wall	0.049 in	0.049 in	Right Angle Through Hole	16	4	20	Gold	Nylon 4T Polyamide (PA4T)	All	-65 °C	150 °C	0.13 in	Solder	Jackscrews Mating Flange Polarizing Key	UL94 V-0	Gold	Male Pin
Harwin Inc. G125-22496F3-03-08-00			Receptacle	2	Screw Lock								Free Hanging (In-Line)	8	3	11		Nylon 4T Polyamide (PA4T)		-65 °C	150 °C			Mating Flange Polarizing Key			Female Socket	0.049 in	Crimp	0.049 in	Green
Harwin Inc. G125-22496F5-02-08-02			Receptacle	2	Screw Lock								Panel Mount	8	4	12		Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)		-65 °C	150 °C			Mating Flange Mounting Flange Polarizing Key Threaded Inserts			Female Socket	0.049 in	Crimp	0.049 in	Green
Harwin Inc. G125-22496F2-02-04-00			Receptacle	2	Screw Lock								Free Hanging (In-Line)	4	2	6		Nylon 4T Polyamide (PA4T)		-65 °C	150 °C			Mating Flange Polarizing Key			Female Socket	0.049 in	Crimp	0.049 in	Green
Harwin Inc. G125-MW10150M94				1																											White	1	Pin to Pin	8 µin	26 AWG	5.9 in	Gold
Harwin Inc. G125-32496M3-02-04-00			Plug	2	Screw Lock								Free Hanging (In-Line)	4	2	6		Nylon 4T Polyamide (PA4T)		-65 °C	150 °C			Polarizing Key Threaded Inserts			Male Pin	0.049 in	Crimp	0.049 in	Green
