O6H305
Activeifm efector, inc.

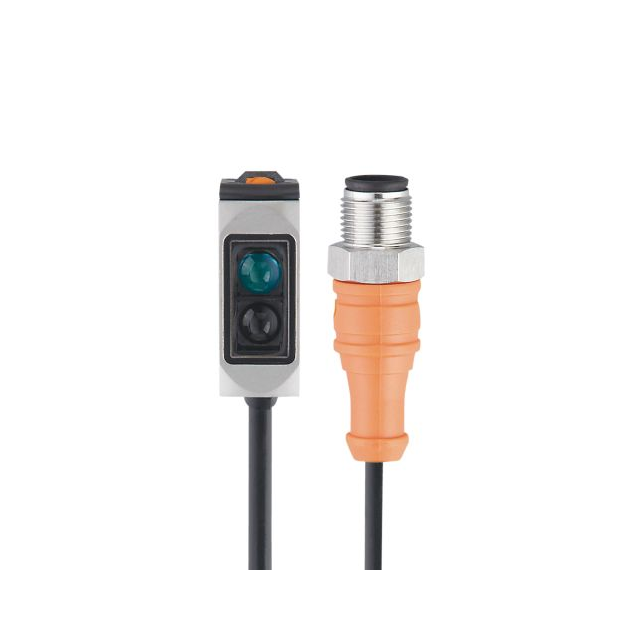

DIFFUSE REFLECTION SENSOR; RED L
O6H305
Activeifm efector, inc.
DIFFUSE REFLECTION SENSOR; RED L
Description
General part information
O6H305
Diffuse, Background Suppression Optical Sensor 0.079" ~ 7.874" (2mm ~ 200mm) NPN - Dark-ON/Light-ON - Selectable
Technical Specifications
Parameters and characteristics for this part
| Specification | O6H305 |
|---|---|
| Cable Length | 11.81 in |
| Connection Method | Cable with Connector |
| Ingress Protection | IP69K, IP65, IP68, IP67 |
| Light Source | Red |
| Light Source Wavelength (Red) | 633 nm |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | Light-ON - Selectable, NPN - Dark-ON |
| Sensing Distance Maximum | 7.874 " |
| Sensing Distance Minimum | 0.079 " |
| Sensing Method | Background Suppression, Diffuse |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
