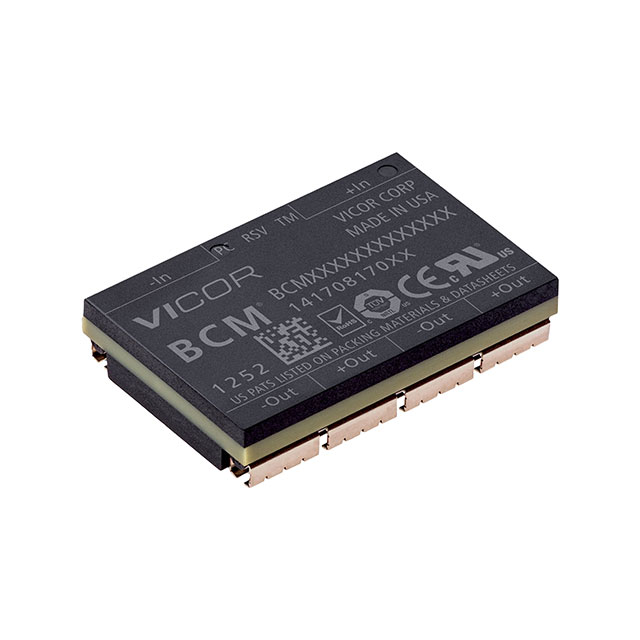

BCM352T110T300B00

Active

Vicor Corporation

DC DC CONVERTER 11V 300W

Search across all available documentation for this part.

Active

Vicor Corporation

DC DC CONVERTER 11V 300W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BCM352T110T300B00	BCM352 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	28.5 A	24 - 28.5 A
Efficiency	95.5 %	95.3 - 95.5 %
Features	OVP, UVLO, SCP, OCP, OTP	OVP, UVLO, SCP, OCP, OTP, Remote On/Off
Mounting Type	Through Hole	Through Hole, Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-55 - -40 °C
Package / Case	Module	Module
Power (Watts)	300 W	300 W
Size / Dimension [x]	1.28 in	1.28 in
Size / Dimension [x]	32.5 mm	32.5 mm
Size / Dimension [y]	22 mm	22 mm
Size / Dimension [y]	0.87 in	0.87 in
Size / Dimension [z]	6.7 mm	6.7 mm
Size / Dimension [z]	0.26 "	0.26 "
Type	Bus Converter Module	Bus Converter Module
Voltage - Input (Max) [Max]	365 V	365 V
Voltage - Input (Min) [Min]	330 V	330 V
Voltage - Isolation	4.242 kV	4.242 kV
Voltage - Output 1	11 V	11 - 12.5 V

DC DC CONVERTER 11V 300W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Type	Applications	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Efficiency	Power (Watts)	Voltage - Input (Min) [Min]	Features	Package / Case	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Output 1	Number of Outputs	Voltage - Isolation
Vicor Corporation BCM352T110T300B00	125 °C	-40 °C	Bus Converter Module	ITE (Commercial)	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm	28.5 A	95.5 %	300 W	330 V	OCP, OTP, OVP, SCP, UVLO	Module	365 V	Through Hole	11 V	1	4.242 kV
Vicor Corporation BCM352T125T300A00	125 °C	-40 °C	Bus Converter Module	ITE (Commercial)	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm	24 A	95.3 %	300 W	330 V	Remote On/Off, UVLO	Module	365 V	Through Hole	12.5 V	1	4.242 kV
Vicor Corporation BCM352F125M300A00	125 °C	-55 °C	Bus Converter Module	ITE (Commercial)	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm	24 A	95.3 %	300 W	330 V	Remote On/Off, UVLO	Module	365 V	Surface Mount	12.5 V	1	4.242 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 98.66

General part information

Bus Converter Module DC DC Converter 1 Output 11V 28.5A 330V - 365V Input
