BC-AGG-15P

Active

Boxco

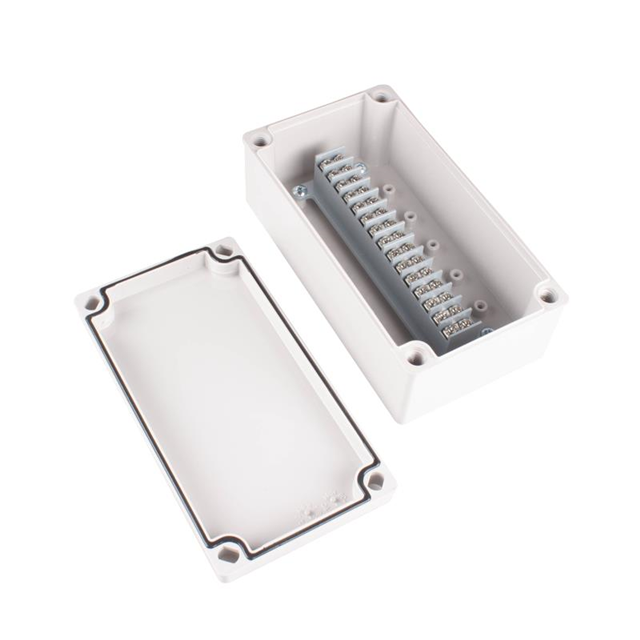

JUNCTION BOX ABS 7.87"L X 3.94"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BC-AGG-15P

Active

Boxco

JUNCTION BOX ABS 7.87"L X 3.94"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BC-AGG-15P	BC-AG Series

Area (L x W)	-	7.76 - 244 in˛
Area (L x W)	-	9.92 - 1575 cm˛
Area (L x W)	-	140 in˛
Area (L x W)	-	122 - 518 in˛
Area (L x W)	-	784 - 3339 cm˛
Area (L x W)	-	64 cm˛
Area (L x W)	-	330 in˛
Area (L x W)	-	2128 cm˛
Color	Light Gray	Grayish Blue, Light Gray
Container Type	Junction Box	Junction Box, Box
Design	Lift-Off Screw Cover	Lift-Off Screw Cover, Stainless Steel Latch, Hinged Door
Features	Sealing Gasket	Sealing Gasket, Latches, Hinged, Lockable, Mounting Brackets, Wall Mount
Height	-	1.693 in
Height	-	43 mm
Height	-	150 mm
Height [z]	70 mm	5.906 - 255 in
Height [z]	2.756 "	2.165 - 10.039 in
Material	Plastic, ABS	Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	NEMA 4X, NEMA 6, IP66, IP67	NEMA 4X, NEMA 6, IP66, IP67, UL 508A
Size / Dimension	-	5.906 - 530 mm
Size / Dimension	-	200 - 250 mm
Size / Dimension [x]	200 mm	7.874 - 730 mm
Size / Dimension [x]	7.874 in	3.15 - 28.74 in
Size / Dimension [y]	3.937 in	2.165 - 20.866 in
Size / Dimension [y]	100 mm	100 - 200 mm
Thickness	-	4.5 mm
Thickness	-	0.177 in
Thickness	-	0.146 in
Thickness	-	3.7 mm

BC-AG Series

JUNCT BOX ABS 3.583"L X 2.953"W

Part	Features	Material Flammability Rating	Design	Ratings	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Color	Material	Height [diameter]	Height [diameter]	Area (L x W)	Area (L x W)	Container Type	Height [z]	Height [z]	Area (L x W) [custom]	Height [z]	Thickness [custom]	Thickness [custom]	Size / Dimension [y]
Boxco BC-ABB-6PT	Sealing Gasket	UL94 HB	Lift-Off Screw Cover	IP66, IP67, NEMA 4X, NEMA 6	3.583 in	91 mm	2.953 in	75 mm	Grayish Blue	Plastic, ABS	1.693 in	43 mm	10.6 in˛	68 cm˛	Junction Box
Boxco BC-AGG-6P	Sealing Gasket	UL94 HB	Lift-Off Screw Cover	IP66, IP67, NEMA 4X, NEMA 6	3.583 in	91 mm	2.953 in	75 mm	Light Gray	Plastic, ABS	1.693 in	43 mm	10.6 in˛	68 cm˛	Junction Box
Boxco BC-AGP-151512	Hinged, Latches, Lockable, Sealing Gasket	UL94 HB	Hinged Door, Stainless Steel Latch	IP66, IP67, NEMA 4X, NEMA 6	5.906 in	150 mm	5.906 "	150 mm	Light Gray	Plastic, ABS			34.9 in˛	225 cm²	Box
Boxco BC-ABB-4P	Sealing Gasket	UL94 HB	Lift-Off Screw Cover	IP66, IP67, NEMA 4X, NEMA 6	3.583 in	91 mm	2.165 in	55 mm	Grayish Blue	Plastic, ABS	1.693 in	43 mm	7.76 in˛	50 cm˛	Junction Box
Boxco BC-AGP-303015	Hinged, Latches, Lockable, Sealing Gasket	UL94 HB	Hinged Door, Stainless Steel Latch	IP66, IP67, NEMA 4X, NEMA 6	11.811 in	300 mm	11.811 "	300 mm	Light Gray	Plastic, ABS				900 cm²	Box	5.906 in	150 mm	140 in˛
Boxco BC-AGP-162113	Hinged, Latches, Lockable, Sealing Gasket	UL94 HB	Hinged Door, Stainless Steel Latch	IP66, IP67, NEMA 4X, NEMA 6	8.268 in	210 mm	6.299 in	160 mm	Light Gray	Plastic, ABS			52.1 in˛	336 cm˛	Box	130 mm			5.118 in
Boxco BC-AGP-507018	Hinged, Latches, Lockable, Mounting Brackets, Sealing Gasket	UL94 HB	Hinged Door, Stainless Steel Latch	IP66, IP67, NEMA 4X, NEMA 6	28.74 in	730 mm	20.866 in	530 mm	Light Gray	Plastic, ABS					Box	185 mm			7.283 in	4.5 mm	0.177 in
Boxco BC-AGS-102007	Sealing Gasket, Wall Mount	UL94 HB	Lift-Off Screw Cover	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	7.874 in	200 mm	3.937 in		Light Gray	Plastic, ABS					Box	70 mm			2.756 "			100 mm
Boxco BC-AGP-112607	Hinged, Latches, Lockable, Sealing Gasket	UL94 HB	Hinged Door, Stainless Steel Latch	IP66, IP67, NEMA 4X, NEMA 6	10.236 inches	260 mm	4.331 in		Light Gray	Plastic, ABS			44.3 in˛	286 cm˛	Box	75 mm			2.953 in			110 mm
Boxco BC-AGG-6PH	Sealing Gasket	UL94 HB	Lift-Off Screw Cover	IP66, IP67, NEMA 4X, NEMA 6	3.583 in	91 mm	2.165 in	55 mm	Light Gray	Plastic, ABS	1.693 in	43 mm	7.76 in˛	50 cm˛	Junction Box

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.15

Description

General part information

BC-AG Series

Junction Box Plastic, ABS Light Gray Lift-Off Screw Cover 7.874" L x 3.937" W (200.00mm x 100.00mm) X 2.756" (70.00mm)
