2B22M154P1001-1-H

Obsolete

Sullins Connector Solutions

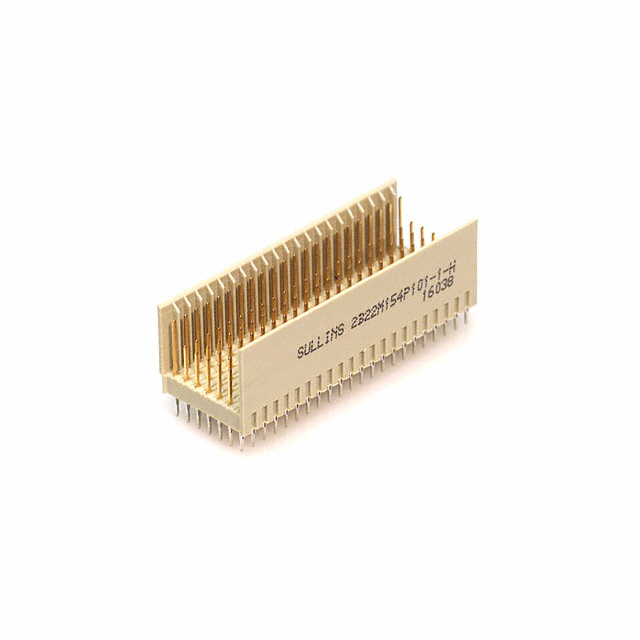

CONN HEADER 154POS 2MM PRESS-FIT

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN HEADER 154POS 2MM PRESS-FIT

Technical Specifications

Parameters and characteristics for this part

CONN HEADER 154POS 2MM PRESS-FIT

Part	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Connector Usage	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Number of Positions	Number of Positions Loaded	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Finish	Current Rating (Amps)
Sullins Connector Solutions 2B22M154P1001-1-H	0.079 in	2 mm	Header, Male Pins	2, 5	CompactPCI	0.76 Ám	30 Áin	B 22	154	All	Through Hole	125 °C	-65 ░C	Press-Fit	Gold	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

154 (110 + 44 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
