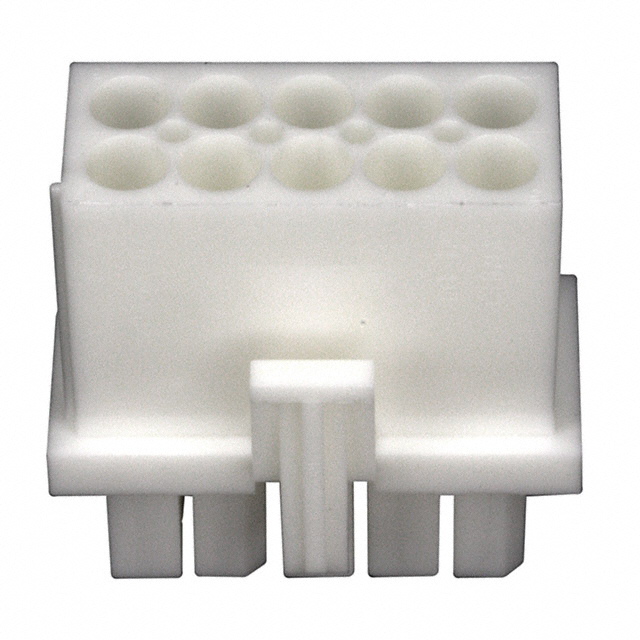

794781-1

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 10POS 4.14MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 10POS 4.14MM

Technical Specifications

Parameters and characteristics for this part

CONN PLUG HSG 10POS 4.14MM

Part	Fastening Type	Note	Insulation Material	Pitch [x]	Pitch [x]	Color	Number of Positions	Mounting Type	Number of Rows	Contact Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing	Row Spacing	Contact Termination
TE Connectivity AMP Connectors 794781-1	Latch Lock	Contacts Not Included	Nylon, Polyamide (PA)	4.14 mm	0.163 in	White	10	Free Hanging (In-Line)	2	Male or Female	Plug	-20 C	105 ░C	4.14 mm	0.163 in	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Rectangular Connectors - Housings Plug White 0.163" (4.14mm)

Technical documentation and resources
