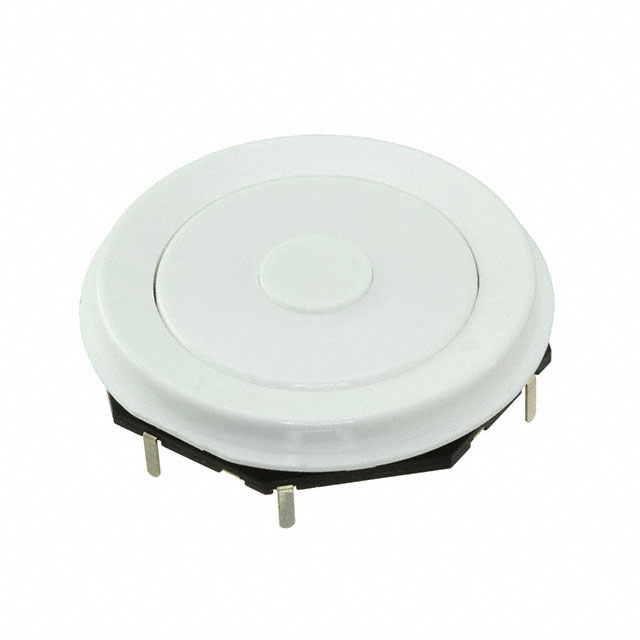

TSWB3NC LFS
ObsoleteLITTELFUSE
SWITCH NAVIGATION SCROLL 1MA 10V
TSWB3NC LFS
ObsoleteLITTELFUSE
SWITCH NAVIGATION SCROLL 1MA 10V
Description
General part information
TSWB3NC LFS
Navigation Switch, 2 - Axis Digital (Mechanical Switch) Output
Technical Specifications
Parameters and characteristics for this part
| Specification | TSWB3NC LFS |
|---|---|
| Actuator Type | Scroll Wheel and Directional Ring |
| Axis Count | 2 Axis |
| Current Rating | 1 mA |
| Features | White Actuator |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 300 gf |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Output | Digital (Mechanical Switch) |
| Switch Function | 4-Way Directional, Center Select, 360° Rotational |
| Termination Style | PC Pin |
| Type | Navigation Switch, 2 - Axis |
| Voltage Rating - DC | 10 V |
