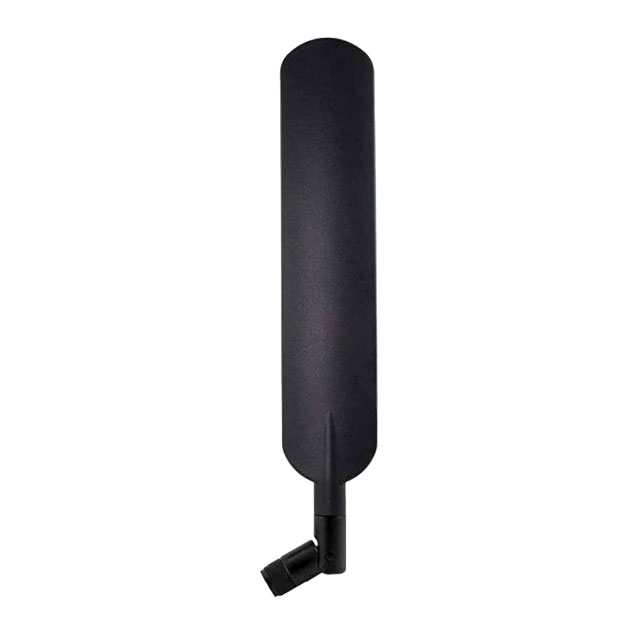

AETC2303XS-SS

Active

Abracon LLC

LTE 4G/5G & WI-FI 6E WHIP ANTENN

Search across all available documentation for this part.

Active

Abracon LLC

LTE 4G/5G & WI-FI 6E WHIP ANTENN

Technical Specifications

Parameters and characteristics for this part

LTE 4G/5G & WI-FI 6E WHIP ANTENN

Part	RF Family/Standard	Frequency Group	Applications	Frequency Range [Max]	Frequency Range [Min]	Frequency (Center/Band)	Number of Bands	Antenna Type	Return Loss	Gain	Height (Max) [Max]	Height (Max) [Max]	Mounting Type	Power - Max [Max]	VSWR
Abracon LLC AETC2303XS-SS	Cellular, WiFi	Wide Band	2G, 3G, 4G, 5G, IoT, LTE, M2M, UWB	1.575 GHz, 2.69 GHz, 4.2 GHz, 5 GHz, 7.125 GHz, 960 MHz	1.452 GHz, 1.71 GHz, 3.3 GHz, 4.4 GHz, 5.15 GHz, 617 MHz	1.513 GHz, 2.2 GHz, 3.75 GHz, 4.7 GHz, 6.137 GHz, 788.5 MHz	6	Tilt, Whip	12 dB	2 dBic, 2.5 dBi, 3 dBi	9.331 in	237 mm	Connector Mount	500 mW	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA 2G, 3G, 4G, 5G, IoT, LTE, M2M, UWB Whip, Tilt SMA Male Connector Mount
