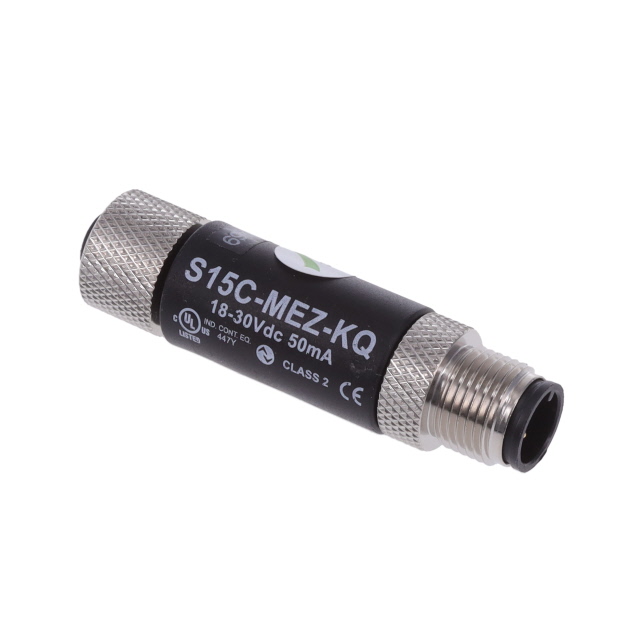

S15C-MEZ-KQ
ActiveBANNER ENGINEERING
IN-LINE SIGNAL CONVERTER, MODBUS MASTER EZ-ARRAY TO IO-LINK DEVICE, 10 VDC TO 30 VDC
S15C-MEZ-KQ
ActiveBANNER ENGINEERING
IN-LINE SIGNAL CONVERTER, MODBUS MASTER EZ-ARRAY TO IO-LINK DEVICE, 10 VDC TO 30 VDC
Description
General part information
S15C-MEZ-KQ
Circular Connector Standard 4/4 Male Pins/Female Sockets Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | S15C-MEZ-KQ |
|---|---|
| Accessory Type | Converter |
| Connector Style | Standard |
| Convert From (Adapter End) | Male Pins |
| Convert To (Adapter End) | Female Sockets |
| Fastening Type | Threaded |
| Features | Coupling Nut |
| For Use With/Related Products | Actuator/Sensor Cables |
| Housing Color | Black |
| Housing Material | PVC, Polyvinyl Chloride |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP68, IP67, IP65 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions (Convert From) | 4 |
| Number of Positions (Convert To) | 4 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation (Convert From) | Keyed |
| Orientation (Convert To) | Keyed |
| Shell Size - Insert (Convert From) | M12 |
| Shell Size - Insert (Convert To) | M12 |
| Shielding | Unshielded |
| Voltage Rating | 30 V |
