MLX81150LPF-DAA-000-RE
ObsoleteMelexis Technologies NV
IC LIN SLAVE 32K FLASH 48TQFP
MLX81150LPF-DAA-000-RE
ObsoleteMelexis Technologies NV
IC LIN SLAVE 32K FLASH 48TQFP
Description
General part information
MLX81150LPF-DAA-000-RE
IC LIN SLAVE 32K FLASH 48TQFP
Technical Specifications
Parameters and characteristics for this part
| Specification | MLX81150LPF-DAA-000-RE |
|---|---|
| Applications | LIN Controller |
| Core Processor | 16-Bit RISC |
| Interface | PWM, SPI |
| Mounting Type | Surface Mount |
| Number of I/O | 8 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |

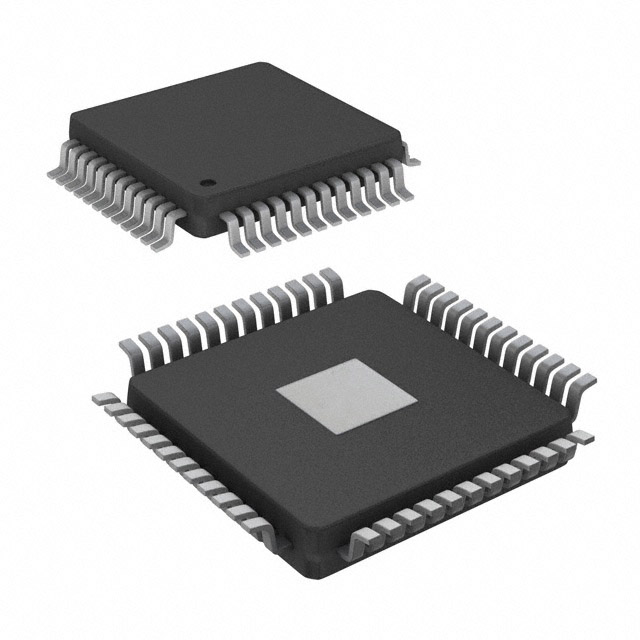

| Package / Case | 48-TQFP Exposed Pad |
| Package Length | 7 mm |
| Package Name | 48-TQFP-EP |
| Package Width | 7 mm |
| Program Memory Size (EEPROM) | 380 B |
| Program Memory Size (FLASH) | 32 kB |
| Program Memory Type | EEPROM, FLASH |
| RAM Size Depth | 2 K |
| RAM Size Width | 8 bit |
| Voltage - Supply (Maximum) | 18 V |
| Voltage - Supply (Minimum) | 5.5 V |
