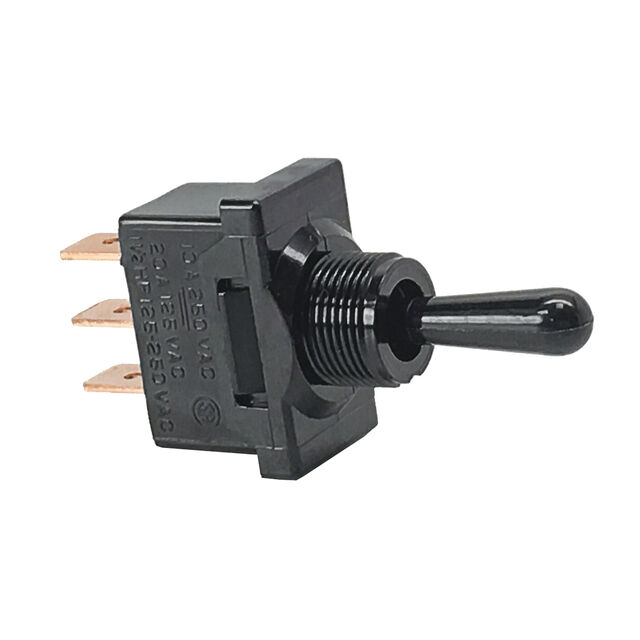

DA100-BB-B

Active

Carling Technologies

SWITCH TOGGLE SPST 10A 125V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH TOGGLE SPST 10A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DA100-BB-B	DA100 Series

Actuator Length	-	17.45 mm
Actuator Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Actuator Type	Standard Round	Standard Round, Paddle
Circuit	SPST	SPST
Current Rating (Amps)	10 A	10 A
Electrical Life	25000 Steps	25000 Steps
Illumination	Non-Illuminated	Non-Illuminated
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	0 °C	0 °C
Panel Cutout Dimensions [diameter]	12.7 mm	12.7 mm
Switch Function	On-Off	On-Off
Termination Style	Solder Lug	Solder Lug
Voltage Rating - AC	125 V	125 V

SWITCH TOGGLE SPST 10A 125V

Part	Voltage Rating - AC	Illumination	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Switch Function	Electrical Life	Actuator Material	Termination Style	Current Rating (Amps)	Circuit	Actuator Length [x]
Carling Technologies DA100-BB-B	125 V	Non-Illuminated	Standard Round	0 °C	85 °C	12.7 mm	On-Off	25000 Steps	Nylon, Polyamide (PA)	Solder Lug	10 A	SPST
Carling Technologies DA100-PW-W	125 V	Non-Illuminated	Paddle	0 °C	85 °C	12.7 mm	On-Off	25000 Steps	Nylon, Polyamide (PA)	Solder Lug	10 A	SPST	17.45 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 5.79

General part information

Toggle Switch SPST Panel Mount
