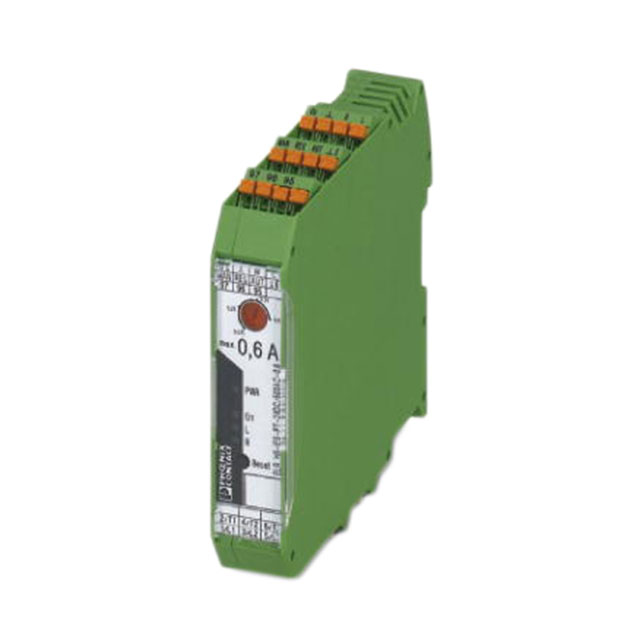

2906058
ActivePhoenix Contact
MOTOR STARTER REV 0.6A 42-550V
2906058
ActivePhoenix Contact
MOTOR STARTER REV 0.6A 42-550V
Description
General part information
2906058
Motor Starter, Reversible 24VDC Supply 0.6A 42 ~ 550V Load
Technical Specifications
Parameters and characteristics for this part
| Specification | 2906058 |
|---|---|
| Control / Drive Type | Motor Starter, Reversible |
| Current - Output | 600 mA |
| Motor Type | AC Motor |
| Mounting Type | DIN Rail |
| Number of Motors | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 5 °C |
| Type | Module |
| Voltage - Load (Max) | 550 V |
| Voltage - Load (Min) | 42 V |
| Voltage - Supply | 24 VDC |
| Wattage - Load | 300 W, 2.5 W |
| Weight | 0.882 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
