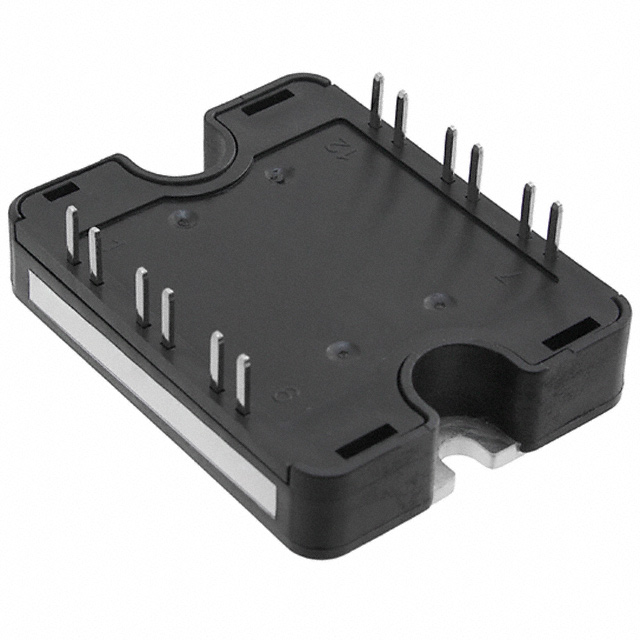

Specification	APTGT75H60T1G

Configuration	Full Bridge Inverter
Current - Collector (Ic) (Max)	100 A
Current - Collector Cutoff (Max)	250 µA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	4.62 nF
Mounting Type	Chassis Mount
NTC Thermistor	Yes
Operating Temperature (Max)	175 °C
Operating Temperature (Min)	-40 °C
Package / Case	SP1
Package Name	SP1
Power - Max	250 VA
Vce(on) (Max)	1.9 V
Voltage - Collector Emitter Breakdown (Max)	600 V

APTGT75 Series

1200V/Triple Dual common source/IGBT modules

Part	Package / Case	Mounting Type	NTC Thermistor	Package Name	Voltage - Collector Emitter Breakdown (Max)	Input	Input Capacitance (Cies) @ Vce	Current - Collector (Ic) (Max)	Vce(on) (Max)	Power - Max	IGBT Type	Configuration	Current - Collector Cutoff (Max)	Operating Temperature (Max)	Operating Temperature (Min)
Microchip Technology APTGT75A60T1G	SP1	Chassis Mount	Yes	SP1	600 V	Standard	4.62 nF	100 A	1.9 V	250 VA	Trench Field Stop	Half Bridge	250 µA	175 °C	-40 °C
Microchip Technology APTGT75TL60T3G	SP3	Chassis Mount	Yes	SP3	600 V	Standard	4.62 nF	100 A	1.9 V	250 VA	Trench Field Stop	Three Level Inverter	250 µA	175 °C	-40 °C
Microchip Technology APTGT75DA120TG	SP4	Chassis Mount	Yes	SP4	1200 V	Standard	5.34 nF	110 A	2.1 V	357 W	Trench Field Stop	Single	250 µA	150 °C	-40 °C
Microchip Technology APTGT75DH120T3G	SP3	Chassis Mount	Yes	SP3	1200 V	Standard	5.34 nF	110 A	2.1 V	357 W	Trench Field Stop	Asymmetrical Bridge	250 µA	150 °C	-40 °C
Microchip Technology APTGT75SK120TG	SP4	Chassis Mount	Yes	SP4	1200 V	Standard	5.34 nF	110 A	2.1 V	357 W	Trench Field Stop	Single	250 µA	150 °C	-40 °C
Microchip Technology APTGT75TDU60PG	SP6	Chassis Mount		SP6-P	600 V	Standard	4.62 nF	100 A	1.9 V	250 VA	Trench Field Stop	Dual - Common Source Triple	250 µA	175 °C	-40 °C
Microchip Technology APTGT75A120T1G	SP1	Chassis Mount	Yes	SP1	1200 V	Standard	5.34 nF	110 A	2.1 V	357 W	Trench Field Stop	Half Bridge	250 µA	150 °C	-40 °C
Microchip Technology APTGT75H60T3G	SP3	Chassis Mount	Yes	SP3	600 V	Standard	4.62 nF	100 A	1.9 V	250 VA	Trench Field Stop	Full Bridge Inverter	250 µA	175 °C	-40 °C
Microchip Technology APTGT75DA60T1G	SP1	Chassis Mount	Yes	SP1	600 V	Standard	4.62 nF	100 A	1.9 V	250 VA	Trench Field Stop	Single	250 µA	175 °C	-40 °C
Microchip Technology APTGT75DDA60T3G	SP3	Chassis Mount	Yes	SP3	600 V	Standard	4.62 nF	100 A	1.9 V	250 VA	Trench Field Stop	Dual Boost Chopper	250 µA	175 °C	-40 °C
