XAUG20A

Active

SunLED

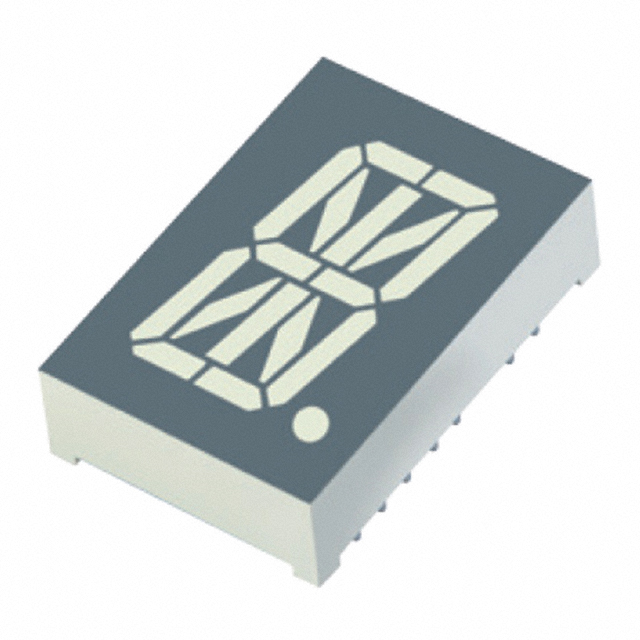

DISPLAY 16SEG 0.8" SGL GRN 18DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XAUG20A

Active

SunLED

DISPLAY 16SEG 0.8" SGL GRN 18DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XAUG20A

Color	Green
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	20.32 mm
Digit/Alpha Size	0.8 in
Display Type	16-Segment, Alphanumeric
Millicandela Rating	3 mcd
Number of Characters [custom]	1
Package / Case	15.24 mm
Package / Case	0.6 in
Package / Case	18-DIP
Power Dissipation (Max) [Max]	62.5 mW
Size / Dimension [x]	27.7 mm
Size / Dimension [x]	1.091 in
Size / Dimension [y]	20 mm
Size / Dimension [y]	0.787 in
Size / Dimension [z]	0.335 "
Size / Dimension [z]	8.5 mm
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	565 nm

XAUG20 Series

DISPLAY 16SEG 0.8" SGL GRN 18DIP

Part	Wavelength - Peak	Display Type	Color	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Package / Case	Package / Case	Package / Case	Current - Test	Digit/Alpha Size	Digit/Alpha Size	Power Dissipation (Max) [Max]	Number of Characters [custom]	Common Pin	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
SunLED XAUG20A	565 nm	16-Segment, Alphanumeric	Green	2 V	3 mcd	15.24 mm	0.6 in	18-DIP	10 mA	20.32 mm	0.8 in	62.5 mW	1	Common Anode	20 mm	27.7 mm	0.335 "	0.787 in	1.091 in	8.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2016	$ 1.85

Description

General part information

XAUG20 Series

Display Modules - LED Character and Numeric Green 16-Segment, Alphanumeric 1 Character Common Anode 2V 10mA 1.091" H x 0.787" W x 0.335" D (27.70mm x 20.00mm x 8.50mm) 18-DIP (0.600", 15.24mm)

Documents

Technical documentation and resources
