Q-0203J0001.75M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMB JCK-JCK 29.53"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY BNC-SMB JCK-JCK 29.53"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

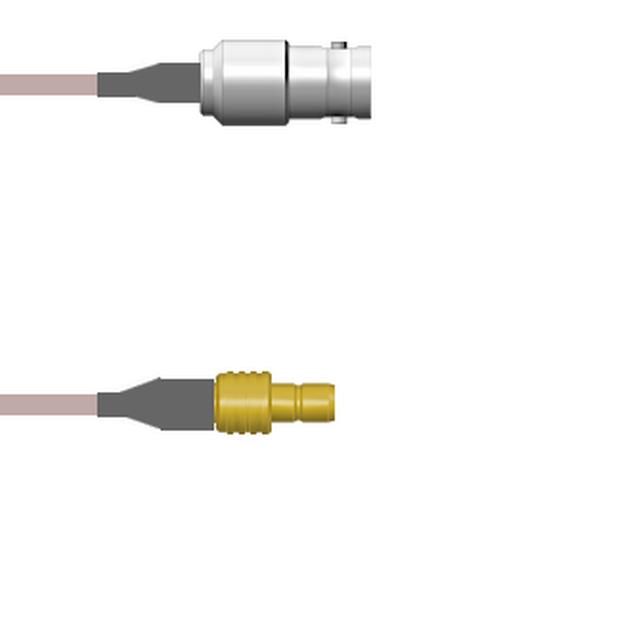

Cable Assembly Coaxial BNC to SMB RG-178 29.53" (750.00mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

COAX CBL BNC TO SMB 9.8'

Part	Length	Length	Length	Color	Frequency - Max [Max]	2nd Connector Mounting Type	Cable Type	1st Connector	Overall Impedance	1st Contact Gender	2nd Connector	Features	Style	1st Connector Mounting Type	2nd Contact Gender	Length [x]	Length [x]
Amphenol Custom Cable Q-0203J0001003M	3 m	118.1 in	9.8 '	Copper	4 GHz	Free Hanging (In-Line)	RG-178	BNC Jack	50 Ohms	Female	SMB Jack	Shielded	BNC to SMB	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-0203J0001.75M	750 mm	29.53 "		Copper	4 GHz	Free Hanging (In-Line)	RG-178	BNC Jack	50 Ohms	Female	SMB Jack	Shielded	BNC to SMB	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-0203J00010.5M	50 cm	19.69 "		Copper	4 GHz	Free Hanging (In-Line)	RG-178	BNC Jack	50 Ohms	Female	SMB Jack	Shielded	BNC to SMB	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-0203J0001.25M				Copper	4 GHz	Free Hanging (In-Line)	RG-178	BNC Jack	50 Ohms	Female	SMB Jack	Shielded	BNC to SMB	Free Hanging (In-Line)	Female	9.843 "	250 mm
Amphenol Custom Cable Q-0203J0001001M	1 m	39.4 in	3.3 ft	Copper	4 GHz	Free Hanging (In-Line)	RG-178	BNC Jack	50 Ohms	Female	SMB Jack	Shielded	BNC to SMB	Free Hanging (In-Line)	Female
