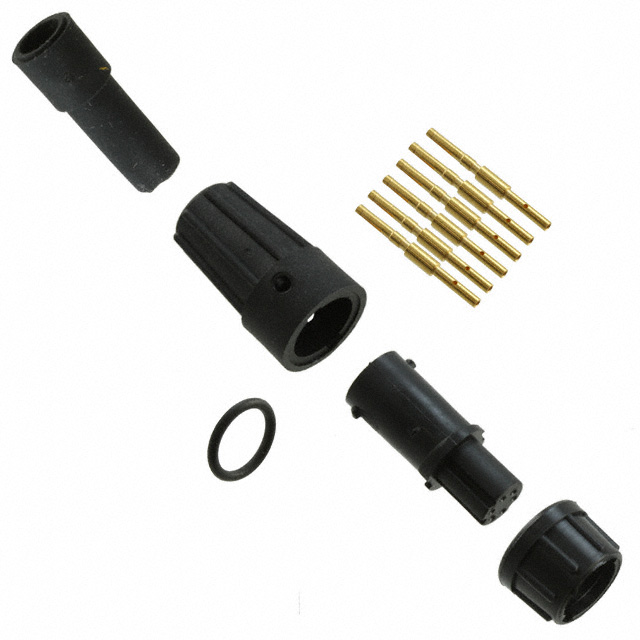

16980-6SG-522

Active

Conxall/Switchcraft

CONN PLUG FMALE 6POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 6POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	16980-6SG-522	16980-6S Series

Applications	Medical, Data, Instrumentation, Industrial	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening [Max] [diameter]	5.84 mm	5.84 mm
Cable Opening [Max] [diameter]	0.23 in	0.23 in
Cable Opening [Min] [diameter]	0.22 in	0.22 in
Cable Opening [Min] [diameter]	5.59 mm	5.59 mm
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	4 A	4 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB	UL94 HB
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	6	6
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	A	A
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 VAC	600 VAC

CONN PLUG FMALE 6POS GOLD CRIMP

Part	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Contact Finish - Mating	Shielding	Applications	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Features	Color	Material Flammability Rating	Backshell Material, Plating	Number of Positions	Fastening Type	Mounting Type	Orientation	Contact Material	Connector Type	Termination	Primary Material	Current Rating (Amps)
Conxall/Switchcraft 16980-6SG-522	600 VAC	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	Gold	Unshielded	Data, Industrial, Instrumentation, Medical	5.84 mm	0.22 in	5.59 mm	0.23 in	Backshell	Black	UL94 HB	Thermoplastic	6	Bayonet Lock	Free Hanging (In-Line)	A	Copper Alloy	Female Sockets, Plug	Crimp	Plastic	4 A
Conxall/Switchcraft 16980-6SG-318	600 VAC	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	Gold	Unshielded	Data, Industrial, Instrumentation, Medical					Backshell	Black	UL94 HB	Thermoplastic	6	Bayonet Lock	Free Hanging (In-Line)	A	Copper Alloy	Female Sockets, Plug	Crimp	Plastic	4 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Plug, Female Sockets Crimp
