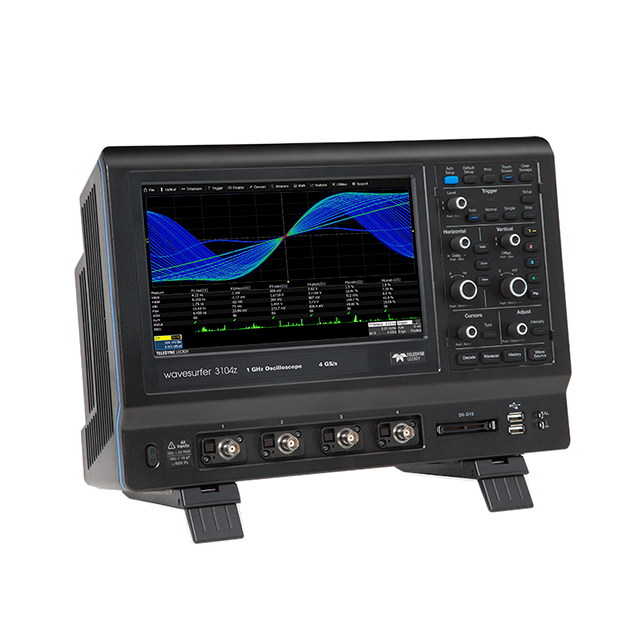

WAVESURFER 3014Z

Obsolete

TELEDYNE LECROY

SCOPE 100MHZ 4CH 1/2GS/S 10MPTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WAVESURFER 3014Z

Obsolete

TELEDYNE LECROY

SCOPE 100MHZ 4CH 1/2GS/S 10MPTS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WAVESURFER 3014Z

Bandwidth	100 MHz
Channels	4 Analog
Display Type	LCD - Color (Touch)
Function	Playback, Embedded Trigger and Decode Protocols, Record, Trend, Save, Function Generator
Includes	Adapter, Probe, Cover, SD Card
Input Impedance	16 pF, 1 MΩ
Interface	USB, Ethernet
Memory Size	20 kpts
Probe Type	Passive 10:1 (4)
Rise Time (Typ)	3.5 ns
Sampling Rate (Per Second)	4 G
Type	Bench, Digital
Voltage - Input (Max) [Max]	400 V
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC

3014Z Series

SCOPE 100MHZ 4CH 1/2GS/S 10MPTS

Part	Includes	Function	Channels	Input Impedance	Sampling Rate (Per Second)	Voltage - Input (Max) [Max]	Type	Bandwidth	Rise Time (Typ)	Probe Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Type	Memory Size	Interface
TELEDYNE LECROY WAVESURFER 3014Z	Adapter, Cover, Probe, SD Card	Embedded Trigger and Decode Protocols, Function Generator, Playback, Record, Save, Trend	4 Analog	1 MΩ, 16 pF	4 G	400 V	Bench, Digital	100 MHz	3.5 ns	Passive 10:1 (4)	100 VAC	240 VAC	LCD - Color (Touch)	20 kpts	Ethernet, USB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

3014Z Series

100 MHz Bench, Digital Oscilloscopes Ethernet, USB Interface LCD - Color (Touch) Display 4 Analog Channel 400V Record, Playback, Save, Trend, Function Generator, Embedded Trigger and Decode Protocols
