ActiveTE Connectivity AMP Connectors
2P UNSHROUD HEADER FULL PIN,BOSS,GWT
2384269-2
ActiveTE Connectivity AMP Connectors
2P UNSHROUD HEADER FULL PIN,BOSS,GWT
Description
General part information
2384269-2

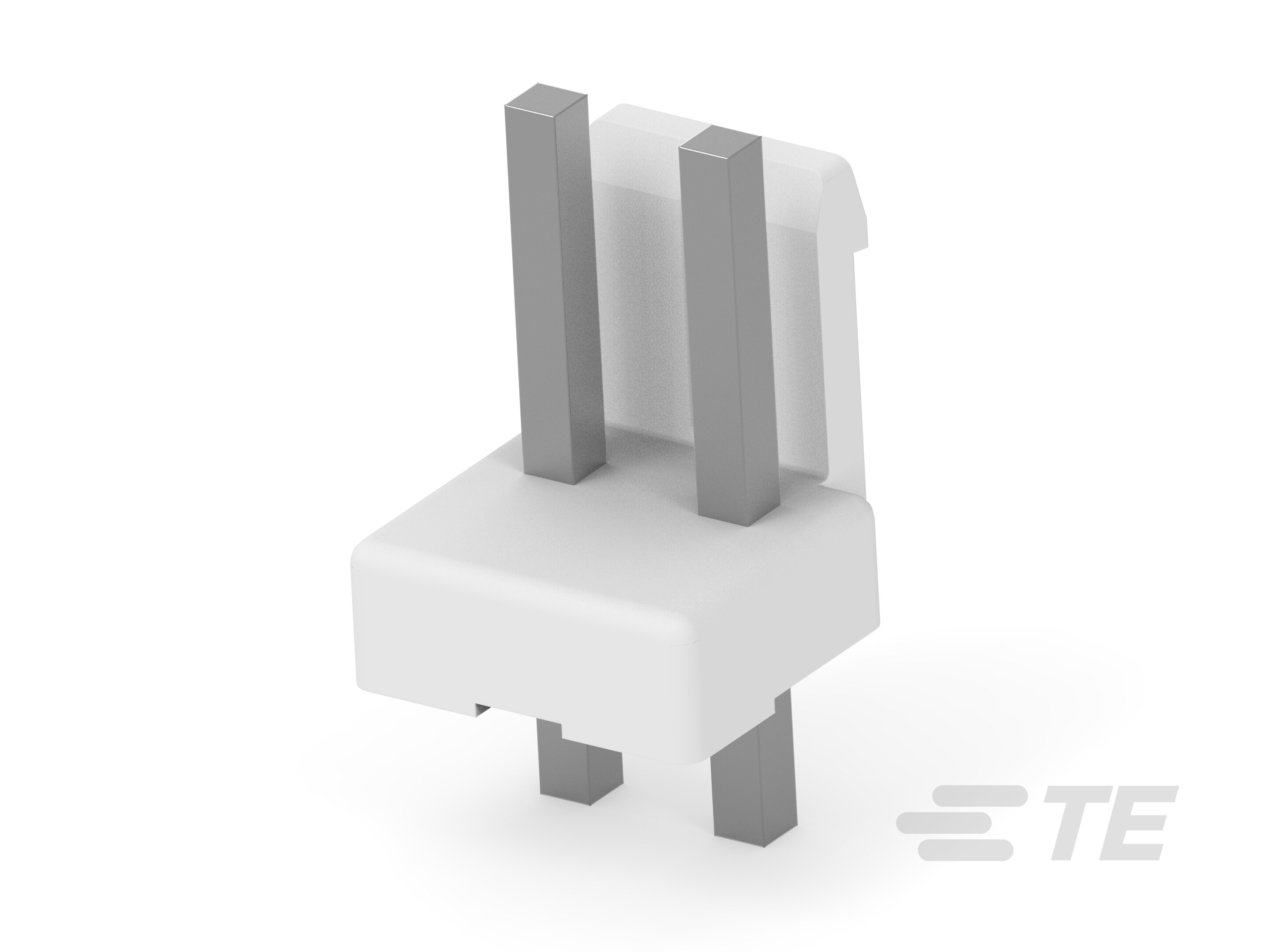

Housing Assembly, Housing for Male Terminals, Wire-to-Board, 2 Position, 3.96 mm [.156 in] Centerline, Crimp, 1 Row, Natural, Economy Power
Technical Specifications
Parameters and characteristics for this part
| Specification | 2384269-2 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 0.303 in |
| Contact Length - Post | 0.146 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 12.3 A |
| Fastening Type | Latch Lock |
| Features | Board Guide |
| Insulation Color | Natural |
| Insulation Height | 0.362 in |
| Insulation Material | Resin |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Contact Length | 0.567 in |
| Pitch - Mating | 0.156 in |
| Shrouding | Shrouded - 1 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 600 V |
