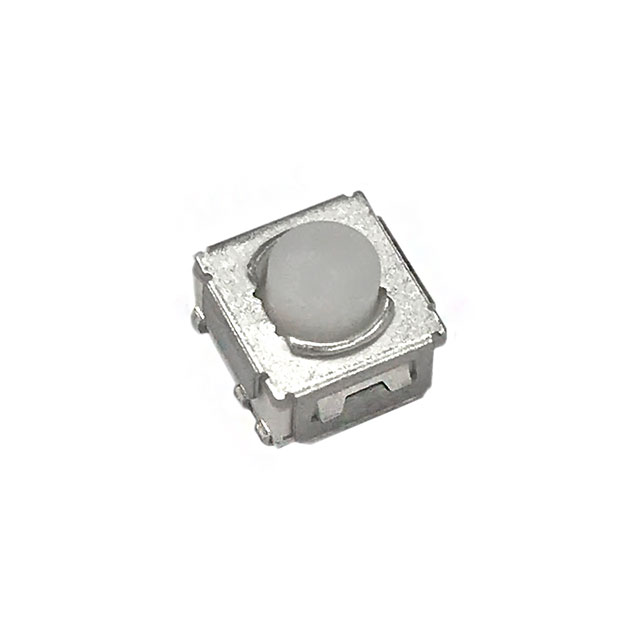

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	228EJVAYFR	228EJVA Series

Actuator Height off PCB, Vertical [z]	5.5 mm	5.5 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Illuminated	Illuminated
Illumination Type, Color	LED, Yellow	LED, Yellow, Blue, Blue/Red
Illumination Voltage (Nominal)	-	1.7 - 3.6 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Surface Mount	Surface Mount
Operating Force	200 gf	200 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	7.2 mm	7.2 mm
Outline [y]	6.8 mm	6.8 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.7 mm	0.7 mm
Termination Style	J Lead	J Lead

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Mechanical Life	Mounting Type	Circuit	Switch Function	Actuator Height off PCB, Vertical [z]	Ingress Protection	Switch Travel	Actuator Orientation	Illumination	Operating Force	Actuator Type	Contact Rating @ Voltage	Outline [y]	Outline [x]	Illumination Voltage (Nominal)
CTS Electrocomponents 228EJVAYFR	J Lead	85 °C	-40 °C	LED, Yellow	100000 Cycles	Surface Mount	SPST-NO	Off-Mom	5.5 mm	IP67 - Dust Tight, Waterproof	0.7 mm	Top Actuated	Illuminated	200 gf	Standard	0.05 A, 12 VDC	6.8 mm	7.2 mm
CTS Electrocomponents 228EJVABFR	J Lead	85 °C	-40 °C	Blue, LED	100000 Cycles	Surface Mount	SPST-NO	Off-Mom	5.5 mm		0.7 mm	Top Actuated	Illuminated	200 gf	Standard	0.05 A, 12 VDC	6.8 mm	7.2 mm	3.6 VDC
CTS Electrocomponents 228EJVARBFR	J Lead	85 °C	-40 °C	Blue/Red, LED	100000 Cycles	Surface Mount	SPST-NO	Off-Mom	5.5 mm		0.7 mm	Top Actuated	Illuminated	200 gf	Standard	0.05 A, 12 VDC	6.8 mm	7.2 mm	1.7 VDC, 3 VDC
