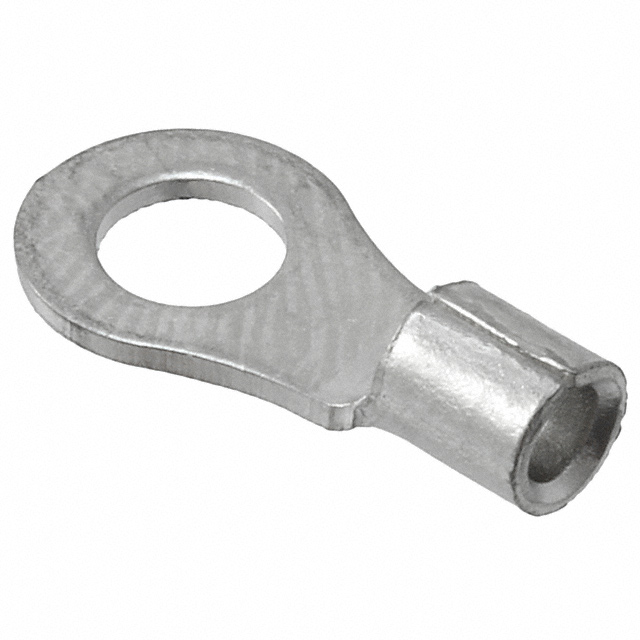

Specification	0192030083

Contact Material	Nickel
Features	High Temperature
Insulation	Non-Insulated
Length - Overall	0.645 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Circular
Termination	Crimp
Width - Outer Edges	0.312 in
Wire Gauge (AWG) (Max)	16 AWG
Wire Gauge (AWG) (Min)	14 AWG

019203 Series

Part	Stud/Tab Size	Terminal Type	Mounting Type	Width - Outer Edges	Termination	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Length - Overall	Features	Contact Material	Insulation	Contact Finish	Thickness	Number of Wire Entries	Stud/Tab Size
Molex 0192030160	8 Stud	Circular	Free Hanging (In-Line)	0.375 in	Crimp	12 AWG	10 AWG	0.785 in	High Temperature	Nickel	Non-Insulated
Molex 0192030079	0.25 Stud	Circular	Free Hanging (In-Line)	0.467 in	Crimp	16 AWG	14 AWG	0.837 in	High Temperature	Nickel	Non-Insulated
Molex 0192030099	10 Stud	Circular	Free Hanging (In-Line)	0.375 in	Crimp	12 AWG	10 AWG	0.785 in	Brazed Seam High Temperature	Copper	Non-Insulated	Nickel	0.04 in
Molex 0192030064	10 Stud	Circular	Free Hanging (In-Line)	0.312 in	Crimp	16 AWG	14 AWG	0.645 in	Brazed Seam	Copper	Non-Insulated	Electro-Nickel	0.031 in
Molex 0192030086	10 Stud	Circular	Free Hanging (In-Line)	0.312 in	Crimp	16 AWG	14 AWG	0.645 in	High Temperature	Nickel	Non-Insulated
Molex 0192030385		Butt Splice Individual Openings Inline			Crimp	16 AWG	14 AWG		High Temperature		Non-Insulated			2
Molex 0192030166		Butt Splice Individual Openings Inline			Crimp	22 AWG	18 AWG		High Temperature		Non-Insulated			2
Molex 0192030100	10 Stud	Circular	Free Hanging (In-Line)	0.375 in	Crimp	12 AWG	10 AWG	0.785 in	Brazed Seam High Temperature	Copper	Non-Insulated	Nickel	0.04 in
Molex 0192030158	0.375 in	Circular	Free Hanging (In-Line)	0.592 in	Crimp	12 AWG	10 AWG	1.056 in	Brazed Seam High Temperature	Copper	Non-Insulated	Nickel	0.04 in		3 Stud 8 Stud
Molex 0192030182	0.25 Stud	Circular	Free Hanging (In-Line)	0.53 in	Crimp	12 AWG	10 AWG	0.952 in	Brazed Seam High Temperature	Copper	Non-Insulated	Nickel	0.04 in
