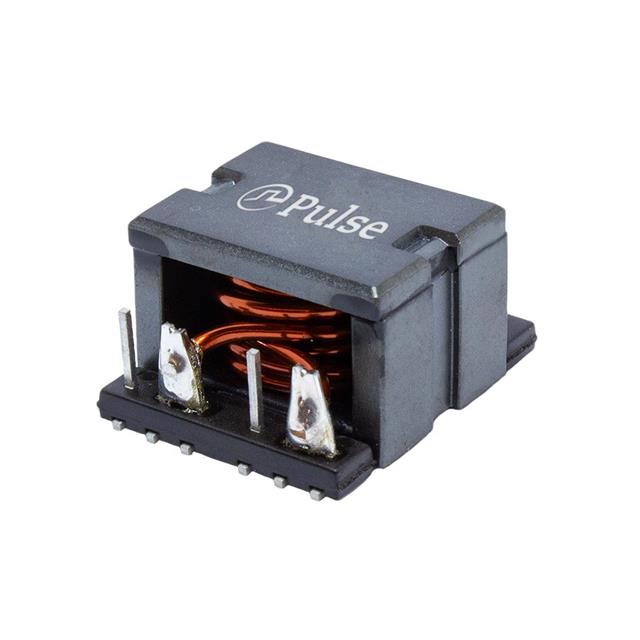

PM9407.104NLT
ActivePulse Electronics
IND CMC 120UH 20A
PM9407.104NLT
ActivePulse Electronics
IND CMC 120UH 20A
Description
General part information
PM9407.104NLT
2 Line Common Mode Choke Surface Mount 20A DCR 2.5mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | PM9407.104NLT |
|---|---|
| Current Rating (Max) | 20 A |
| DC Resistance (DCR) (Max) | 2.5 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.547 in |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package Name | Horizontal |
| Pad Count | 11 PC Pad |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.961 in |
| Size / Dimension Width | 0.85 in |
