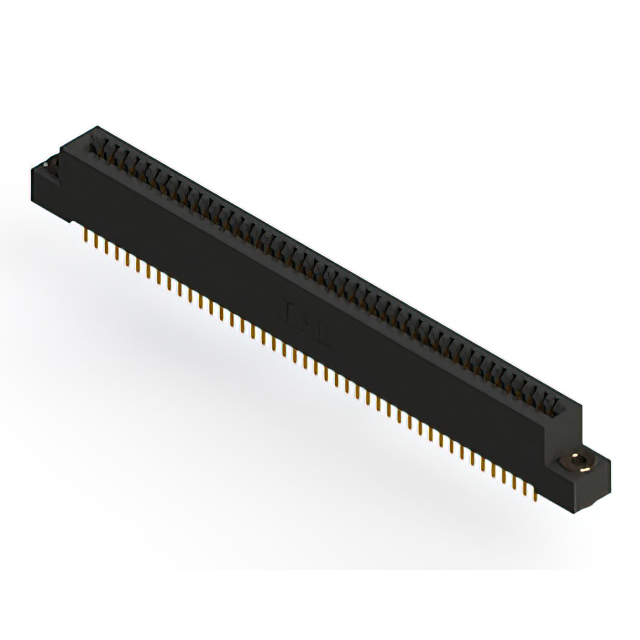

392-088-521-203
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
392-088-521-203
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 392-088-521-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 88 |
| Number of Positions/Bay/Row [custom] | 44 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
392-088 Series
| Part | Termination Rows | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Gender | Color | Flange Feature | Contact Finish | Pitch [x] | Pitch [x] | Contact Material | Read Out | Contact Type | Material - Insulation | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Number of Positions | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 44 | 10 Áin | 0.25 Ám | Female | Black | Flush Mount M3 Threaded Insert Top Opening | Gold | 2.54 mm | 0.1 in | Copper Alloy | Dual | Cantilever | Polyester Thermoplastic | Through Hole | -40 °C | 105 ░C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 88 | Non Specified - Dual Edge | |||
EDAC Inc. | 2 | 44 | 10 Áin | 0.25 Ám | Female | Black | Flush Mount Top Opening Unthreaded | Gold | 2.54 mm | 0.1 in | Copper Alloy | Dual | Cantilever | Polyester Thermoplastic | Through Hole | -40 °C | 105 ░C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 88 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | |
EDAC Inc. | 2 | 44 | 10 Áin | 0.25 Ám | Female | Black | Flush Mount Side Opening Unthreaded | Gold | 2.54 mm | 0.1 in | Copper Alloy | Dual | Cantilever | Polyester Thermoplastic | Board Edge Straddle Mount | -40 °C | 105 ░C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 88 | Non Specified - Dual Edge | 3.25 mm | 0.128 " | Card Extender |
EDAC Inc. | 2 | 44 | 10 Áin | 0.25 Ám | Female | Black | Floating Bobbin Flush Mount | Gold | 2.54 mm | 0.1 in | Copper Alloy | Dual | Cantilever | Polyester Thermoplastic | Through Hole | -40 °C | 105 ░C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 88 | Non Specified - Dual Edge | 2.95 mm | 0.116 in | |
EDAC Inc. | 2 | 44 | 10 Áin | 0.25 Ám | Female | Black | Floating Bobbin Flush Mount | Gold | 2.54 mm | 0.1 in | Copper Alloy | Dual | Cantilever | Polyester Thermoplastic | Board Edge Straddle Mount | -40 °C | 105 ░C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 88 | Non Specified - Dual Edge | 2.95 mm | 0.116 in | Card Extender |
EDAC Inc. | 2 | 44 | 10 Áin | 0.25 Ám | Female | Black | Floating Bobbin Flush Mount | Gold | 2.54 mm | 0.1 in | Copper Alloy | Dual | Cantilever | Polyester Thermoplastic | Through Hole | -40 °C | 105 ░C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 88 | Non Specified - Dual Edge | 2.95 mm | 0.116 in | |
EDAC Inc. | 2 | 44 | 10 Áin | 0.25 Ám | Female | Black | Flush Mount Top Opening Unthreaded | Gold | 2.54 mm | 0.1 in | Copper Alloy | Dual | Cantilever | Polyester Thermoplastic | Through Hole Right Angle | -40 °C | 105 ░C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Wire Wrap | 88 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | |
EDAC Inc. | 2 | 44 | 10 Áin | 0.25 Ám | Female | Black | Gold | 2.54 mm | 0.1 in | Copper Alloy | Dual | Cantilever | Polyester Thermoplastic | Board Edge Straddle Mount | -40 °C | 105 ░C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | 88 | Non Specified - Dual Edge | Card Extender | |||
EDAC Inc. | 2 | 44 | 10 Áin | 0.25 Ám | Female | Black | Floating Bobbin Flush Mount | Gold | 2.54 mm | 0.1 in | Copper Alloy | Dual | Cantilever | Polyester Thermoplastic | Through Hole | -40 °C | 105 ░C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 88 | Non Specified - Dual Edge | 2.95 mm | 0.116 in | |
EDAC Inc. | 2 | 44 | 10 Áin | 0.25 Ám | Female | Black | Flush Mount M3 Threaded Insert Top Opening | Gold | 2.54 mm | 0.1 in | Copper Alloy | Dual | Cantilever | Polyester Thermoplastic | Through Hole | -40 °C | 105 ░C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 88 | Non Specified - Dual Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
392-088 Series
88 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
