9804 0601000

Active

Belden Inc.

MULTI-PAIR 4COND 28AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 28AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9804 0601000

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.44 mm
Jacket (Insulation) Diameter [diameter]	0.214 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.067 mm
Jacket (Insulation) Thickness	0.042 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2960
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	28 AWG

Part	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Shield Coverage	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Number of Conductors	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Shield Type	Conductor Material	Jacket (Insulation) Material	Cable Type	Features	Length	Length
Belden Inc. 9804 060500	Polypropylene (PP)	5.44 mm	0.214 in	UL Style 2960	90 % 100 %	28 AWG	1.067 mm	0.042 in	Aluminum Copper Tinned	4	500 '	152.4 m	36 AWG	7	Computer	-20 C	60 °C	Chrome	Braid Foil	Copper Tinned	Poly-Vinyl Chloride (PVC)	Multi-Pair	Drain Wire
Belden Inc. 9804 0601000	Polypropylene (PP)	5.44 mm	0.214 in	UL Style 2960	90 % 100 %	28 AWG	1.067 mm	0.042 in	Aluminum Copper Tinned	4			36 AWG	7	Computer	-20 C	60 °C	Chrome	Braid Foil	Copper Tinned	Poly-Vinyl Chloride (PVC)	Multi-Pair	Drain Wire	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.24

General part information

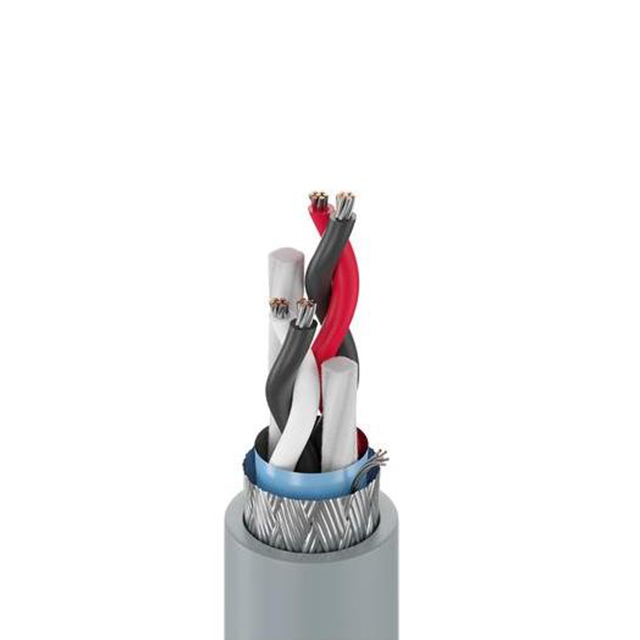

4 (2 Pair Twisted) Conductor Multi-Pair Cable Chrome 28 AWG Foil, Braid 1000.0' (304.8m)
