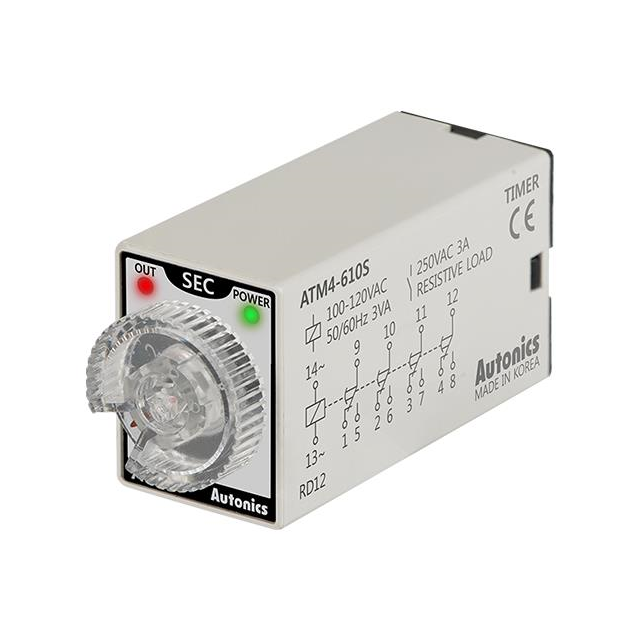

ATM4-610S
ActiveAUTONICS
RELAY TIME DELAY 10SEC 3A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ATM4-610S
ActiveAUTONICS
RELAY TIME DELAY 10SEC 3A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ATM4-610S | ATM4-6 Series |
|---|---|---|
| Circuit | 4 Form C | 4 Form C |
| Circuit | 4PDT | 4PDT |
| Contact Rating @ Voltage | 24 VDC, 3 A, 250 VAC | 3 - 250 VDC |
| Delay Time [Max] | 10 s | 1 - 60 Sec |
| Delay Time [Min] | 1 Sec | 0.1 - 6 Sec |
| Function | On-Delay | On-Delay |
| Mounting Type | Socketable | Socketable |
| Relay Type | Mechanical Relay | Mechanical Relay |
| Termination Style | Plug In, 14 Pin | Plug In, 14 Pin |
| Timing Adjustment Method | Hand Dial | Hand Dial |
| Timing Initiate Method | Input Voltage | Input Voltage |
| Voltage - Supply | 110 VAC/DC | 110 VAC/DC |
ATM4-6 Series
RELAY TIME DELAY 5SEC 3A 250V
| Part | Voltage - Supply | Delay Time [Min] | Delay Time [Max] | Circuit | Circuit | Timing Initiate Method | Timing Adjustment Method | Contact Rating @ Voltage | Relay Type | Function | Termination Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
AUTONICS ATM4-65S | 110 VAC/DC | 0.5 Sec | 5 Sec | 4 Form C | 4PDT | Input Voltage | Hand Dial | 3 A, 24 VDC, 250 VAC | Mechanical Relay | On-Delay | Plug In, 14 Pin | Socketable |
AUTONICS ATM4-660S | 110 VAC/DC | 6 Sec | 60 Sec | 4 Form C | 4PDT | Input Voltage | Hand Dial | 3 A, 24 VDC, 250 VAC | Mechanical Relay | On-Delay | Plug In, 14 Pin | Socketable |
AUTONICS ATM4-61S | 110 VAC/DC | 0.1 Sec | 1 Sec | 4 Form C | 4PDT | Input Voltage | Hand Dial | 3 A, 24 VDC, 250 VAC | Mechanical Relay | On-Delay | Plug In, 14 Pin | Socketable |
AUTONICS ATM4-610S | 110 VAC/DC | 1 Sec | 10 s | 4 Form C | 4PDT | Input Voltage | Hand Dial | 3 A, 24 VDC, 250 VAC | Mechanical Relay | On-Delay | Plug In, 14 Pin | Socketable |
AUTONICS ATM4-660M | 110 VAC/DC | 6 Min | 60 Min | 4 Form C | 4PDT | Input Voltage | Hand Dial | 3 A, 24 VDC, 250 VAC | Mechanical Relay | On-Delay | Plug In, 14 Pin | Socketable |
AUTONICS ATM4-63H | 110 VAC/DC | 4 Form C | 4PDT | Input Voltage | Hand Dial | 3 A, 24 VDC, 250 VAC | Mechanical Relay | On-Delay | Plug In, 14 Pin | Socketable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 28.00 | |
Description
General part information
ATM4-6 Series
On-Delay Time Delay Relay 4PDT (4 Form C) 1 Sec ~ 10 Sec Delay 3A @ 250VAC/24VDC Socketable
