1403725
ActivePhoenix Contact

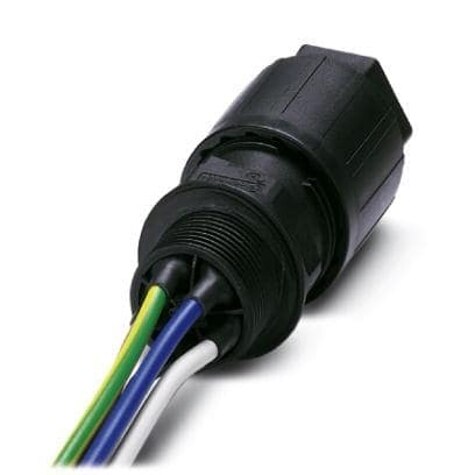

SENSOR CABLES / ACTUATOR CABLES QPD W 4PE2,5 6-11 M20 0,5 BK
1403725
ActivePhoenix Contact
SENSOR CABLES / ACTUATOR CABLES QPD W 4PE2,5 6-11 M20 0,5 BK
Description
General part information
1403725
Cable Assembly 1.64' (500.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1403725 |
|---|---|
| 1st Connector Mounting Type | Panel Feed Through |
| 1st Connector Number of Positions | 5 positions |
| 1st Connector Number of Positions (Signal) | 4 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Position Types | PE |
| 1st Connector Shell Size - Insert | M20 |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Type | Individual |
| Color | Multiple |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP69K, IP68, IP66 |
| Length | 1.64 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
