1220KWN410
ActiveKanebridge
SELF-SEALING & DRILLING SCREW WI
1220KWN410
ActiveKanebridge
SELF-SEALING & DRILLING SCREW WI
Description
General part information
1220KWN410

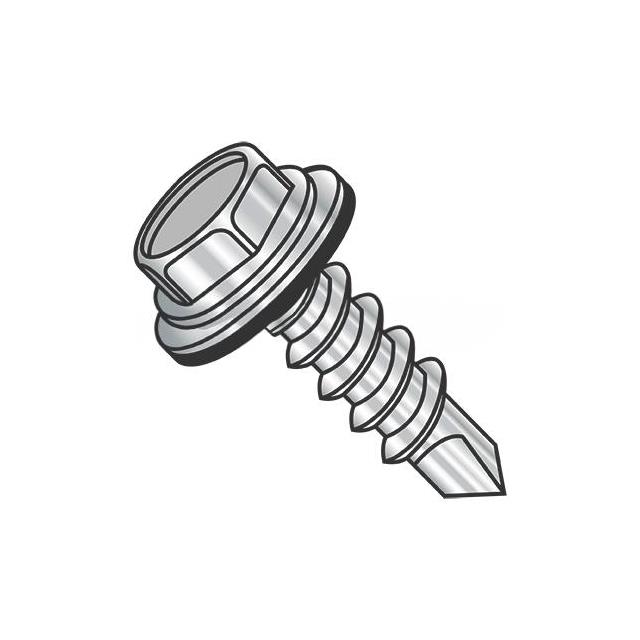

#12-14 Hex Head Self-Drilling Screw External Hex Drive Stainless Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 1220KWN410 |
|---|---|
| Drive Type | External Hex, Hex Socket |
| Features | Washer Included |
| Head Diameter | 0.309 in |
| Head Height | 0.147 in |
| Length - Below Head | 1.25 in |
| Length - Overall | 1.397 in |
| Material | Stainless Steel |
| Plating | Plain |
| Screw Head Type | Hex Head |
| Thread Size (Max) | 14 mm |
| Thread Size (Min) | 12 mm |
| Type | Self-Drilling Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
