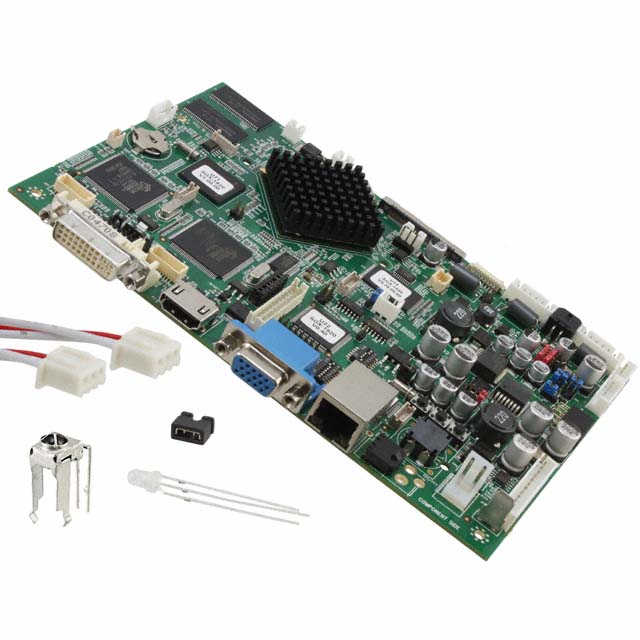

4172500XX-3
ObsoleteDigital View Inc.
LCD DRVR BRD ETHERNET/INFRARED
4172500XX-3
ObsoleteDigital View Inc.
LCD DRVR BRD ETHERNET/INFRARED
Description
General part information
4172500XX-3
- LCD Driver/Controller 12V, 24V 3.3V, 5V, 12V, 18V Ethernet, Infrared, Pushbutton, Serial 7.1" L x 4.7" W (179.1mm x 120.4mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 4172500XX-3 |
|---|---|
| Interface | Serial, Infrared, Pushbutton, Ethernet |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Length | 7.1 in |
| Size / Dimension Width | 4.7 in |
| Voltage - Input | 24 V, 12 V |
| Voltage - Output | 5V, 18V, 12V, 3.3V |
| Voltage - Output | 18 V, 12 V, 3.3 V, 5 VDC |
| Voltage - Output (1) | 3.3 V |
| Voltage - Output (2) | 5 V |
| Voltage - Output (3) | 12 V |
| Voltage - Output (4) | 18 V |
