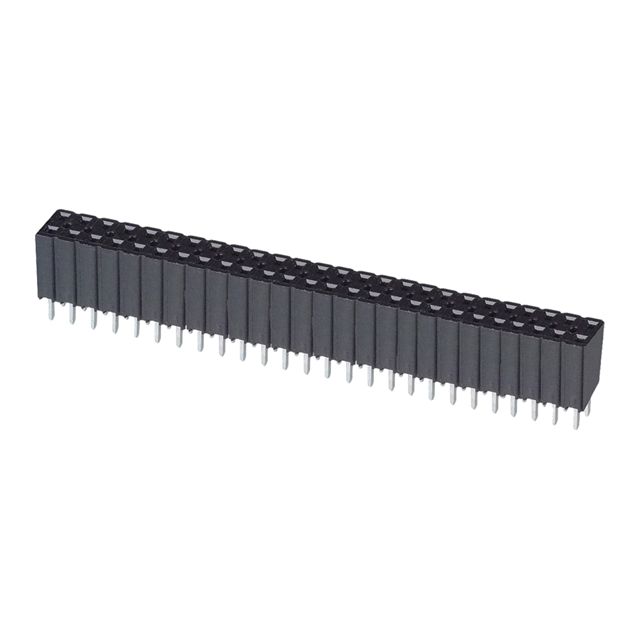

9R9852-01-26-10

Active

3M (TC)

CONN RCPT 52POS 0.1 GOLD PCB

Search across all available documentation for this part.

Active

3M (TC)

CONN RCPT 52POS 0.1 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	9R9852-01-26-10

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	8.25 mm
Insulation Height	0.325 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	52
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	1500 V

Part	Pitch - Mating	Pitch - Mating	Fastening Type	Material Flammability Rating	Voltage Rating	Number of Positions Loaded	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Shape	Contact Material	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Number of Rows	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Finish - Post	Insulation Color	Connector Type	Termination
3M (TC) 9R9852-01-26-10	0.1 in	2.54 mm	Push-Pull	UL94 V-0	1500 V	All	Forked	10 çin	0.25 çm	3.18 mm	0.125 in	Through Hole	-40 °C	105 ░C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Square	Copper Alloy	Gold	2.54 mm	0.1 in	52	2	8.25 mm	0.325 in	2 A	Tin-Lead	Black	Receptacle	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

52 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
