83606 002500

Active

Belden Inc.

CABLE 6COND 20AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 6COND 20AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	83606 002500

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter	0.207 in
Jacket (Insulation) Diameter	5.26 mm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Red
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	6
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style CMP
Shield Coverage	100 %, 85 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	20 AWG

Part	Ratings	Voltage	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Usage	Jacket Color	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Wire Gauge	Operating Temperature [Max]	Operating Temperature [Min]	Shield Type	Cable Type	Conductor Insulation	Number of Conductors	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Jacket (Insulation) Material	Length	Length
Belden Inc. 83606 002100	UL Style CMP	300 V	Aluminum Copper Tinned	0.356 mm	0.014 in	30.5 m	100 ft	Audio Control Instrumentation	Red	85 % 100 %	28	7	Copper Tinned	20 AWG	200 °C	-70 °C	Braid Foil	Multi-Conductor	Fluorinated Ethylene-Propylene (FEP)	6	0.207 in	5.26 mm	Fluorinated Ethylene-Propylene (FEP) Plenum
Belden Inc. 83606 0021000	UL Style CMP	300 V	Aluminum Copper Tinned	0.356 mm	0.014 in			Audio Control Instrumentation	Red	85 % 100 %	28	7	Copper Tinned	20 AWG	200 °C	-70 °C	Braid Foil	Multi-Conductor	Fluorinated Ethylene-Propylene (FEP)	6	0.207 in	5.26 mm	Fluorinated Ethylene-Propylene (FEP) Plenum	1000 ft	304.8 m
Belden Inc. 83606 002500	UL Style CMP	300 V	Aluminum Copper Tinned	0.356 mm	0.014 in	152.4 m	500 '	Audio Control Instrumentation	Red	85 % 100 %	28	7	Copper Tinned	20 AWG	200 °C	-70 °C	Braid Foil	Multi-Conductor	Fluorinated Ethylene-Propylene (FEP)	6	0.207 in	5.26 mm	Fluorinated Ethylene-Propylene (FEP) Plenum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 13.68

General part information

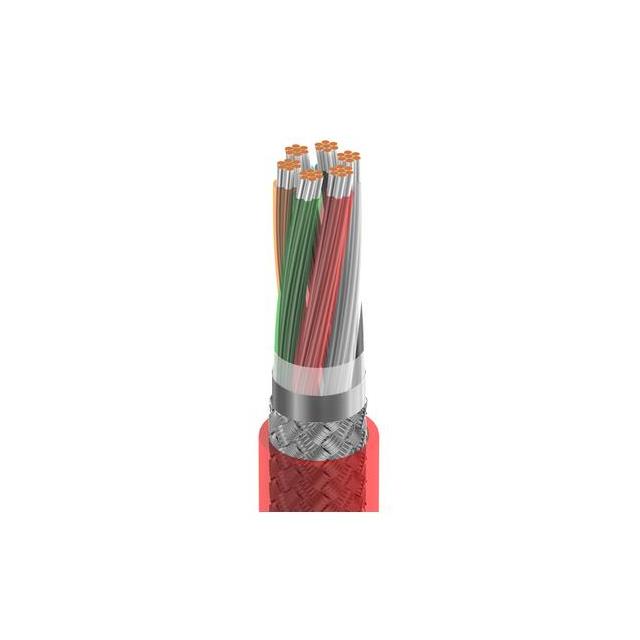

6 Conductor Multi-Conductor Cable Red 20 AWG Foil, Braid 500.0' (152.4m)
