Description
General part information

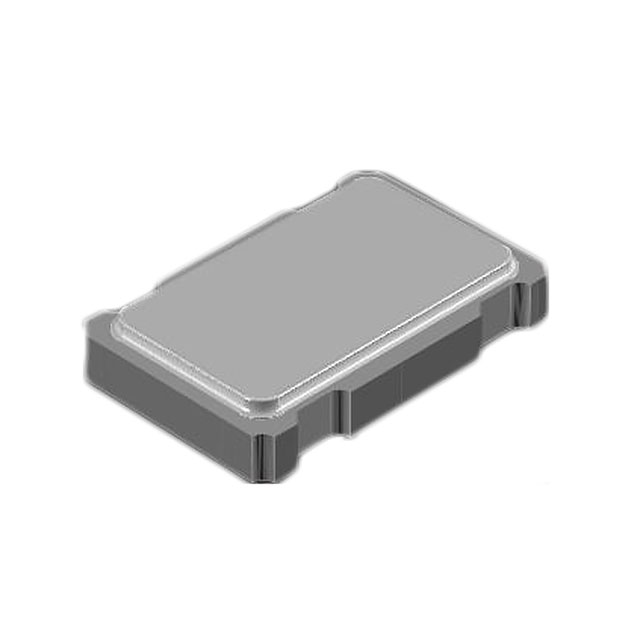

ECS-P53-B
XO (Standard) HCMOS 1 MHz ~ 125 MHz Programmable Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ECS-P53-B |
|---|---|
| Available Frequency Range (Maximum) | 125 MHz |
| Available Frequency Range (Minimum) | 1 MHz |
| Base Resonator | Crystal |
| Current - Supply (Max) | 30 mA |
| Frequency Stability (Total) | 50 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.043 in, 0.051 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Package Length | 5 mm |
| Package Name | 4-SMD |
| Package Width | 3.2 mm |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.126 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
