N4640-2200-RB

Active

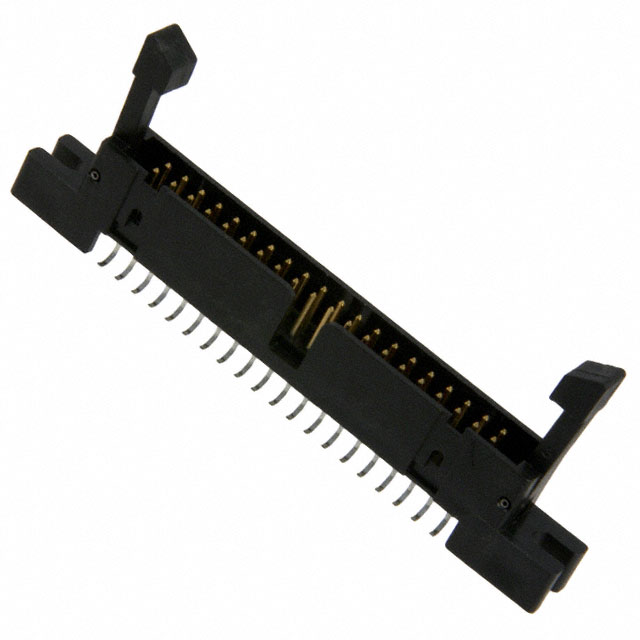

CONN HEADER SMD 40POS 2.54MM

Search across all available documentation for this part.

Active

CONN HEADER SMD 40POS 2.54MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N4640-2200-RB	N4640 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	300 µin	200 - 300 µin
Contact Finish Thickness - Post	7.62 µm	5.08 - 7.62 µm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.25 A	1.25 A
Fastening Type	Latch Lock/Eject Hooks, Short	Latch Lock/Eject Hooks, Short
Insulation Color	Black	Black
Insulation Height	0.525 in	0.525 in
Insulation Height	13.34 mm	13.34 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	40	40
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

CONN HEADER SMD 40POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Termination	Number of Positions Loaded	Connector Type	Insulation Height	Insulation Height	Current Rating (Amps)	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Shape	Number of Positions	Insulation Material	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Style	Contact Finish - Post	Insulation Color	Shrouding	Number of Rows	Mounting Type	Contact Type
3M N4640-2200	200 µin	5.08 µm	0.1 in	2.54 mm	Solder	All	Header	0.525 in	13.34 mm	1.25 A	Latch Lock/Eject Hooks, Short	2.54 mm	0.1 in	30 Áin	0.76 Ám	UL94 V-0	Square	40	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Gold	105 ░C	-55 °C	Copper Alloy	Board to Cable/Wire	Tin-Lead	Black	Shrouded - 4 Wall	2	Surface Mount	Male Pin
3M N4640-2200-RB	300 µin	7.62 µm	0.1 in	2.54 mm	Solder	All	Header	0.525 in	13.34 mm	1.25 A	Latch Lock/Eject Hooks, Short	2.54 mm	0.1 in	30 Áin	0.76 Ám	UL94 V-0	Square	40	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Gold	105 ░C	-55 °C	Copper Alloy	Board to Cable/Wire	Tin	Black	Shrouded - 4 Wall	2	Surface Mount	Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Surface Mount 40 position 0.100" (2.54mm)
