05079714
ActivePerle Systems

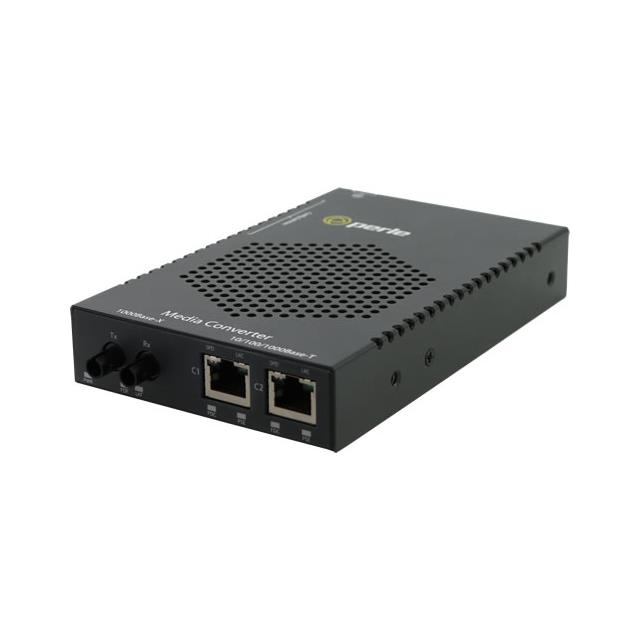

S-1110DHP-ST40 - GIGABIT MEDIA A
05079714
ActivePerle Systems
S-1110DHP-ST40 - GIGABIT MEDIA A
Description
General part information
05079714
S-1110DHP-ST40 - GIGABIT MEDIA A
Technical Specifications
Parameters and characteristics for this part
| Specification | 05079714 |
|---|---|
| Configuration | Fixed |
| Connector Type | ST, RJ45 |
| Copper Ports | 1 |
| Copper Type (Maximum) | 1000 |
| Copper Type (Minimum) | 10 |
| Copper Type (Typical) | 100 |
| Distance | 40 km |
| Features | LFPT |
| Fiber Mode | Singlemode |
| Fiber Ports | 1 |
| Fiber Type | 1000BASE-EX |
| Ingress Protection | IP20 |
| Mounting Type | Rack Mount, DIN Rail |
| MTU (bytes) | 10240 bytes |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Voltage - Input (Maximum) | 57 V |
| Voltage - Input (Minimum) | 52 V |
