ABJ1614409

Obsolete

Panasonic Electric Works

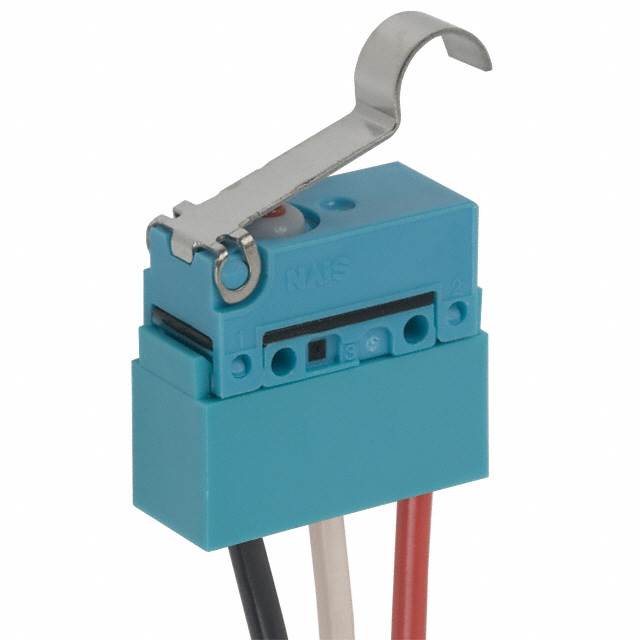

SWITCH SNAP ACTION SPDT 1A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

ABJ1614409

Obsolete

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 1A 125V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ABJ161 Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

How to Read Date Codes

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ABJ1614409	ABJ161 Series

Actuator Type	Simulated Roller, Lever	Round (Pin Plunger), Lever, Straight, Simulated Roller, Lever
Circuit	SPDT	SPDT
Current Rating (Amps)	-	2 - 100 mA
Differential Travel	0.5 mm	0.13 - 0.5 mm
Differential Travel	0.02 in	0.005 - 0.02 in
Electrical Life	6000 Cycles	6000 - 30000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	40 gf	40 - 200 gf
Operating Position	-	0.217 - 0.268 in
Operating Position	-	5.5 - 6.8 mm
Operating Position [x]	9.8 mm	9.8 mm
Operating Position [x]	0.386 in	0.386 in
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	0.02 in	0.01 - 0.02 in
Overtravel	0.5 mm	0.25 - 0.5 mm
Pretravel	0.12 in	0.024 - 0.12 in
Pretravel	3 mm	0.6 - 3 mm
Release Force	3.059 gf	3.059 - 25 gf
Switch Function	On-Mom	On-Mom
Termination Style	Wire Leads	Wire Leads
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	30 V	30 V

ABJ161 Series

SWITCH SNAP ACT SPDT 0.1A 125V

Part	Operating Force	Current Rating (Amps)	Voltage Rating - AC	Switch Function	Circuit	Mounting Type	Release Force	Voltage Rating - DC	Ingress Protection	Electrical Life	Overtravel	Overtravel	Operating Position	Operating Position	Mechanical Life	Pretravel	Pretravel	Differential Travel	Differential Travel	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Operating Position [x]	Operating Position [x]
Panasonic Electric Works ABJ1610619	200 gf	100 mA	125 V	On-Mom	SPDT	Chassis Mount	25 gf	30 V	IP67 - Dust Tight, Waterproof	6000 Cycles	0.25 mm	0.01 in	0.217 in	5.5 mm	1000000 Cycles	0.024 in	0.6 mm	0.13 mm	0.005 in	Round (Pin Plunger)	85 °C	-40 °C	Wire Leads
Panasonic Electric Works ABJ161040	125 gf		125 V	On-Mom	SPDT	Chassis Mount	15 gf	30 V	IP67 - Dust Tight, Waterproof	30000 Cycles	0.25 mm	0.01 in	0.217 in	5.5 mm	1000000 Cycles	0.024 in	0.6 mm	0.13 mm	0.005 in	Round (Pin Plunger)	85 °C	-40 °C	Wire Leads
Panasonic Electric Works ABJ161241	40 gf	100 mA	125 V	On-Mom	SPDT	Chassis Mount	3.059 gf	30 V	IP67 - Dust Tight, Waterproof	6000 Cycles	0.5 mm	0.02 in	0.268 "	6.8 mm	1000000 Cycles	0.12 in	3 mm	0.5 mm	0.02 in	Lever, Straight	85 °C	-40 °C	Wire Leads
Panasonic Electric Works ABJ1610609	200 gf	2 A	125 V	On-Mom	SPDT	Chassis Mount	25 gf	30 V	IP67 - Dust Tight, Waterproof	6000 Cycles	0.25 mm	0.01 in	0.217 in	5.5 mm	1000000 Cycles	0.024 in	0.6 mm	0.13 mm	0.005 in	Round (Pin Plunger)	85 °C	-40 °C	Wire Leads
Panasonic Electric Works ABJ1614409	40 gf		125 V	On-Mom	SPDT	Chassis Mount	3.059 gf	30 V	IP67 - Dust Tight, Waterproof	6000 Cycles	0.5 mm	0.02 in			1000000 Cycles	0.12 in	3 mm	0.5 mm	0.02 in	Lever, Simulated Roller	85 °C	-40 °C	Wire Leads	9.8 mm	0.386 in
Panasonic Electric Works ABJ1612609	65 gf	2 A	125 V	On-Mom	SPDT	Chassis Mount	5.099 gf	30 V	IP67 - Dust Tight, Waterproof	6000 Cycles	0.5 mm	0.02 in	0.268 "	6.8 mm	1000000 Cycles	0.12 in	3 mm	0.5 mm	0.02 in	Lever, Straight	85 °C	-40 °C	Wire Leads
Panasonic Electric Works ABJ1612409	40 gf		125 V	On-Mom	SPDT	Chassis Mount	3.059 gf	30 V	IP67 - Dust Tight, Waterproof	6000 Cycles	0.5 mm	0.02 in	0.268 "	6.8 mm	1000000 Cycles	0.12 in	3 mm	0.5 mm	0.02 in	Lever, Straight	85 °C	-40 °C	Wire Leads
Panasonic Electric Works ABJ1610409	125 gf		125 V	On-Mom	SPDT	Chassis Mount	15 gf	30 V	IP67 - Dust Tight, Waterproof	6000 Cycles	0.25 mm	0.01 in	0.217 in	5.5 mm	1000000 Cycles	0.024 in	0.6 mm	0.13 mm	0.005 in	Round (Pin Plunger)	85 °C	-40 °C	Wire Leads
Panasonic Electric Works ABJ1614419	40 gf	100 mA	125 V	On-Mom	SPDT	Chassis Mount	3.059 gf	30 V	IP67 - Dust Tight, Waterproof	6000 Cycles	0.5 mm	0.02 in			1000000 Cycles	0.12 in	3 mm	0.5 mm	0.02 in	Lever, Simulated Roller	85 °C	-40 °C	Wire Leads	9.8 mm	0.386 in
