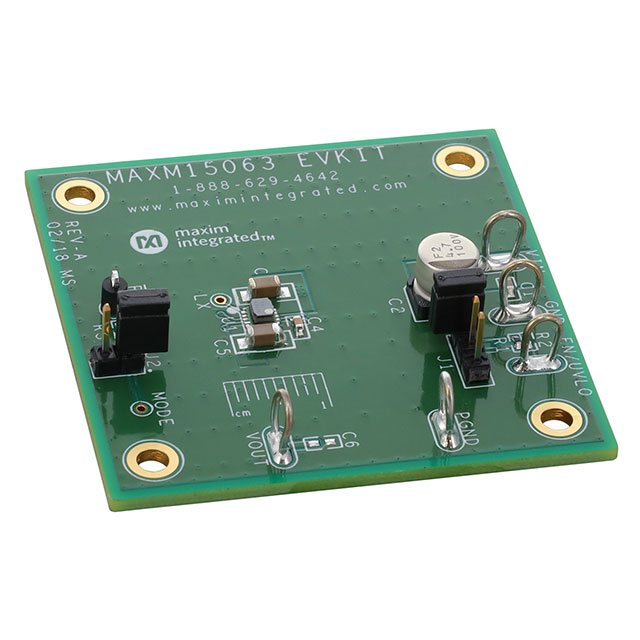

MAXM15063EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL MAXM15063
Deep-Dive with AI
Search across all available documentation for this part.
MAXM15063EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL MAXM15063
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM15063EVKIT# | MAXM15063 Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 300 mA | 300 mA |
| Current - Output (Max) | - | 300 mA |
| Features | - | OCP, UVLO, OTP, SCP |
| Frequency - Switching | 500 kHz | 500 kHz |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 10-SMD Module |
| Regulator Topology | Buck | Buck |
| Size / Dimension | - | 0.06 " |
| Size / Dimension | - | 1.5 mm |
| Size / Dimension | - | 0.1 in |
| Size / Dimension | - | 0.12 in |
| Size / Dimension | - | 2.6 mm |
| Size / Dimension | - | 3 mm |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10-eMGA |
| Supplier Device Package | - | 2.6 |
| Supplier Device Package | - | 3 |
| Type | - | Non-Isolated PoL Module |
| Utilized IC / Part | MAXM15063 | MAXM15063 |
| Voltage - Input (Max) | - | 60 V |
| Voltage - Input (Min) | - | 4.5 V |
| Voltage - Input [Max] | 60 V | 60 V |
| Voltage - Input [Min] | 12 V | 12 V |
| Voltage - Output | 5 V | 5 V |
| Voltage - Output 1 | - | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 38.34 | |
MAXM15063 Series
DC DC CONVERTER 5V
| Part | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Features | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Output 1 | Mounting Type | Package / Case | Voltage - Input (Max) [Max] | Supplier Device Package | Supplier Device Package [y] | Supplier Device Package [x] | Number of Outputs | Current - Output (Max) [Max] | Type | Current - Output | Main Purpose | Utilized IC / Part | Outputs and Type | Outputs and Type | Voltage - Output | Board Type | Voltage - Input [Min] | Voltage - Input [Max] | Regulator Topology | Supplied Contents | Frequency - Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM15063AMB+T | ITE (Commercial) | 125 °C | -40 °C | 4.5 V | OCP, OTP, SCP, UVLO | 0.06 " | 1.5 mm | 0.1 in | 0.12 in | 2.6 mm | 3 mm | 5 V | Surface Mount | 10-SMD Module | 60 V | 10-eMGA | 2.6 | 3 | 1 | 300 mA | Non-Isolated PoL Module | ||||||||||||
Analog Devices Inc./Maxim Integrated MAXM15063AMB+ | ITE (Commercial) | 125 °C | -40 °C | 4.5 V | OCP, OTP, SCP, UVLO | 0.06 " | 1.5 mm | 0.1 in | 0.12 in | 2.6 mm | 3 mm | 5 V | Surface Mount | 10-SMD Module | 60 V | 10-eMGA | 2.6 | 3 | 1 | 300 mA | Non-Isolated PoL Module | ||||||||||||
Analog Devices Inc./Maxim Integrated MAXM15063EVKIT# | 300 mA | DC/DC, Step Down | MAXM15063 | Non-Isolated | 1 | 5 V | Fully Populated | 12 V | 60 V | Buck | Board(s) | 500 kHz |
Description
General part information
MAXM15063 Series
MAXM15063 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
