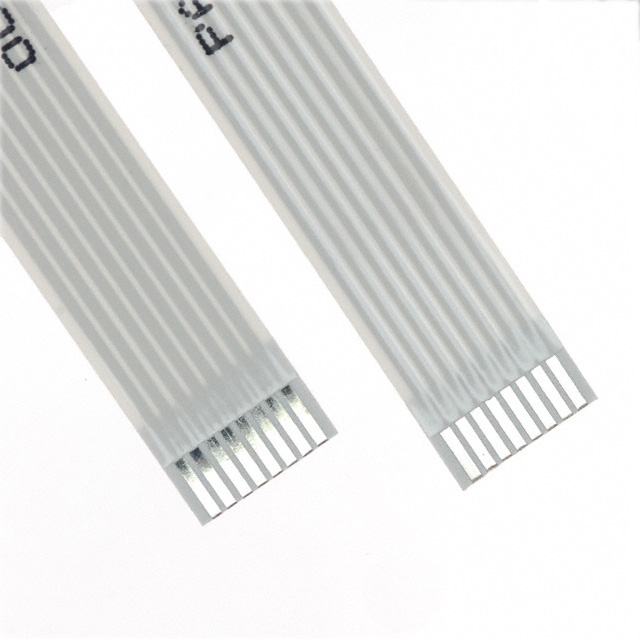

100R8-102B

Active

Parlex USA LLC

CABLE FFC/FPC 8POS 1MM 4"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 8POS 1MM 4"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100R8-102B	100R8 Series

Cable Type	FPC, FFC	FPC, FFC
Length	4 in	2 - 23 in
Length	101.6 mm	50.8 - 584.2 mm
Length	-	152 - 203 mm
Length	-	5.984 - 12 in
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Number of Conductors	8	8
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides

CABLE FFC/FPC 8POS 1MM 3"

Part	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Pitch [x]	Pitch [x]	Length	Length	Number of Conductors	Cable Type	Termination Style	Length [x]	Length [x]
Parlex USA LLC 100R8-76B	0.14 in	3.56 mm	0.039 in	1 mm	3 in	76.2 mm	8	FFC, FPC	Backers on Both Sides, Top on Both Sides
Parlex USA LLC 100R8-127B	0.14 in	3.56 mm	0.039 in	1 mm	5 in	127 mm	8	FFC, FPC	Backers on Both Sides, Top on Both Sides
Parlex USA LLC 100R8-584B	0.14 in	3.56 mm	0.039 in	1 mm	23 in	584.2 mm	8	FFC, FPC	Backers on Both Sides, Top on Both Sides
Parlex USA LLC 100R8-457B	0.14 in	3.56 mm	0.039 in	1 mm	18 "	457.2 mm	8	FFC, FPC	Backers on Both Sides, Top on Both Sides
Parlex USA LLC 100R8-102B	0.14 in	3.56 mm	0.039 in	1 mm	4 in	101.6 mm	8	FFC, FPC	Backers on Both Sides, Top on Both Sides
Parlex USA LLC 100R8-51B	0.14 in	3.56 mm	0.039 in	1 mm	2 in	50.8 mm	8	FFC, FPC	Backers on Both Sides, Top on Both Sides
Parlex USA LLC 100R8-203B	0.14 in	3.56 mm	0.039 in	1 mm			8	FFC, FPC	Backers on Both Sides, Top on Both Sides	203 mm	7.992 in
Parlex USA LLC 100R8-305B	0.14 in	3.56 mm	0.039 in	1 mm		304.8 mm	8	FFC, FPC	Backers on Both Sides, Top on Both Sides		12 in
Parlex USA LLC 100R8-152B	0.14 in	3.56 mm	0.039 in	1 mm			8	FFC, FPC	Backers on Both Sides, Top on Both Sides	152 mm	5.984 in
Parlex USA LLC 100R8-254B	0.14 in	3.56 mm	0.039 in	1 mm		254 mm	8	FFC, FPC	Backers on Both Sides, Top on Both Sides		10 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position FFC, FPC Cable 0.039" (1.00mm) 4.000" (101.60mm)
