9509 060100

Active

Belden Inc.

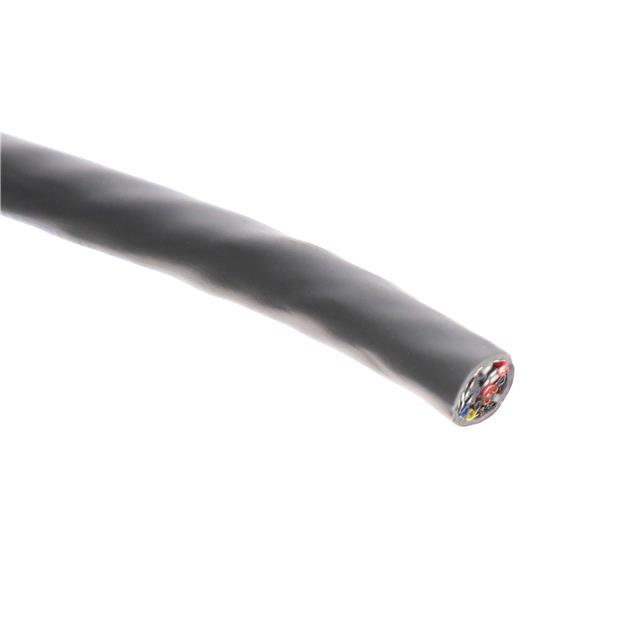

MULTI-PAIR 18COND 24AWG 100'

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 18COND 24AWG 100'

Technical Specifications

Parameters and characteristics for this part

Specification	9509 060100

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	8.48 mm
Jacket (Insulation) Diameter [diameter]	0.334 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	18
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Wire Gauge	24 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Length [x]	Length [x]	Conductor Material	Shield Material	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Usage	Shield Coverage	Wire Gauge	Ratings	Features	Jacket Color
Belden Inc. 9509 060100	-30 ░C	80 C	Foil	Multi-Pair	32 AWG	7	18	30.5 m	100 ft	Copper Tinned	Aluminum	Poly-Vinyl Chloride (PVC)	8.48 mm	0.334 in	Poly-Vinyl Chloride (PVC)	Computer	100 %	24 AWG	UL Style 2464	Drain Wire	Chrome

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 (9 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil 100.0' (30.5m)
