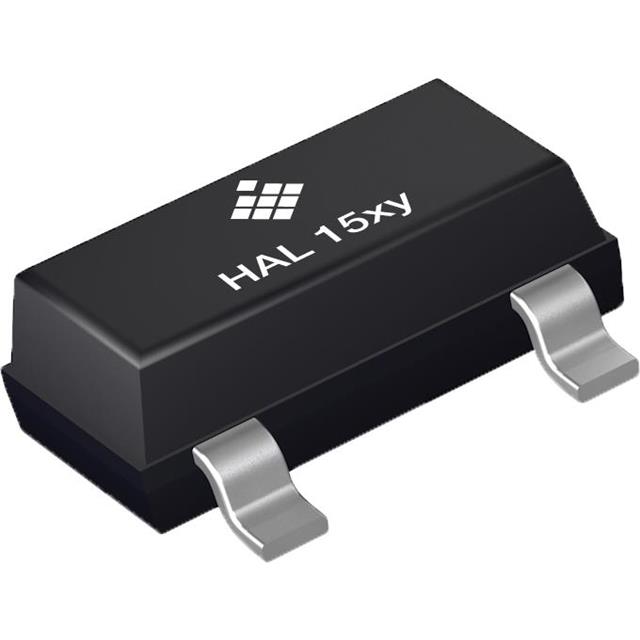

HAL1505 SU
ActiveEPCOS - TDK Electronics
MAGNETIC SWITCH LATCH SOT23
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HAL1505 SU
ActiveEPCOS - TDK Electronics
MAGNETIC SWITCH LATCH SOT23
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HAL1505 SU |
|---|---|
| Current - Supply (Max) [Max] | 1.6 mA |
| Function | Latch |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Output Type | Open Drain |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Qualification | AEC-Q100 |
| Sensing Range | 13.5 mT, -13.5 mT |
| Supplier Device Package | SOT-23-3 |
| Technology | Hall Effect |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.89 | |
| 10 | $ 0.68 | |||
| 25 | $ 0.59 | |||
| 50 | $ 0.57 | |||
| 100 | $ 0.48 | |||
| 500 | $ 0.42 | |||
| 1000 | $ 0.37 | |||
| 5000 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 0.89 | ||
| 10 | $ 0.68 | |||
| 25 | $ 0.59 | |||
| 50 | $ 0.57 | |||
| 100 | $ 0.48 | |||
| 500 | $ 0.42 | |||
| 1000 | $ 0.37 | |||
| 5000 | $ 0.33 | |||
| Tape & Reel (TR) | 10000 | $ 0.26 | ||
Description
General part information
HAL1505 SU
Digital Switch Latch Open Drain Hall Effect SOT-23-3
