518
ActiveAdafruit Industries LLC

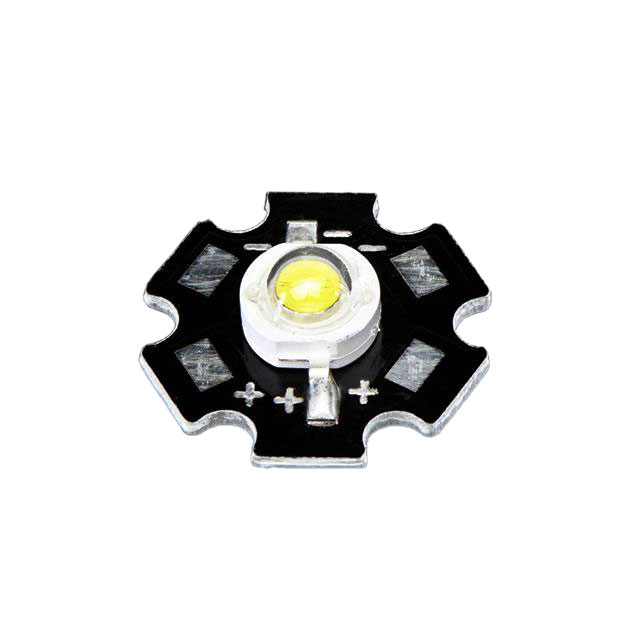

LED 1W COOL WHITE 6000K
518
ActiveAdafruit Industries LLC
LED 1W COOL WHITE 6000K
Description
General part information
518
LED Lighting - White, Cool 6000K 3.2V 350mA 140°
Technical Specifications
Parameters and characteristics for this part
| Specification | 518 |
|---|---|
| CCT (K) | 6000 K |
| Color | Cool, White |
| Configuration | Starboard |
| Current - Max | 500 mA |
| Current - Test | 350 mA |
| Flux | 90 lm |
| Height | 6.6 mm |
| Lens Type | Domed |
| Lumens/Watt | 80 lm/W |
| Luminous Flux (Typical) | 90 lm |
| Temperature - Test | 25 °C |
| Type | LED Module |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
