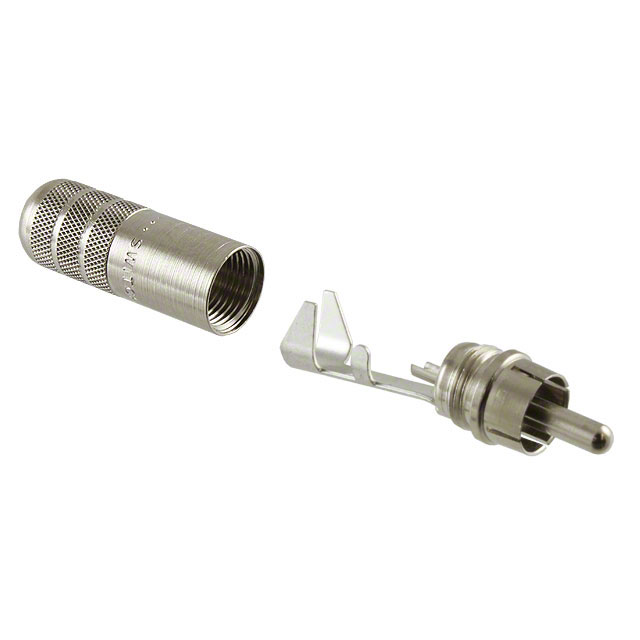

RCA Phono Connectors Ni HD PLUG W/CLAMP
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 3502 |
|---|---|
| Actual Diameter | 0.37 in, 0.125 in |
| Actual Diameter | 9.4 mm, 3.18 mm |
| Body Color | Silver |
| Body Material | Copper Alloy |
| Cable Opening [diameter] | 5.08 mm |
| Cable Opening [diameter] | 0.2 in |
| Connector Type | Phono (RCA) Plug |
| Contact Material | Copper Alloy |
| Contact Material - Plating [custom] | Nickel |
| Current Rating (Amps) | 6 A |
| Gender | Male |
| Includes | 1 Connector, 1 Handle |
| Industry Recognized Mating Diameter [diameter] | 9 mm, 3.2 mm |
| Internal Switch(s) | False |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shielding | Shielded |
| Signal Lines | Mono |
| Termination | Solder |
| Voltage - Rated | 500 VAC |
RCA Phono Connectors Ni HD PLUG W/CLAMP
| Part | Gender | Termination | Connector Type | Contact Material - Plating [custom] | Cable Opening [diameter] | Cable Opening [diameter] | Signal Lines | Current Rating (Amps) | Mounting Type | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Body Color | Body Material | Shielding | Includes | Contact Material | Industry Recognized Mating Diameter [diameter] | Actual Diameter | Actual Diameter | Internal Switch(s) | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. 3502 | Male | Solder | Phono (RCA) Plug | Nickel | 5.08 mm | 0.2 in | Mono | 6 A | Free Hanging (In-Line) | 2 | 2 | Silver | Copper Alloy | Shielded | 1 Connector, 1 Handle | Copper Alloy | 3.2 mm, 9 mm | 0.125 in, 0.37 in | 3.18 mm, 9.4 mm | 500 VAC | 85 °C | -40 °C |
